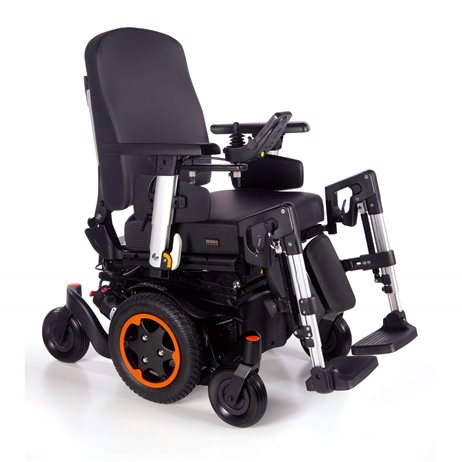

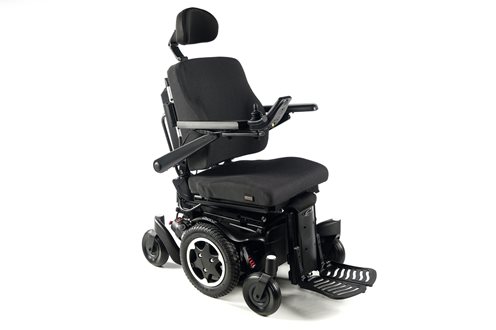

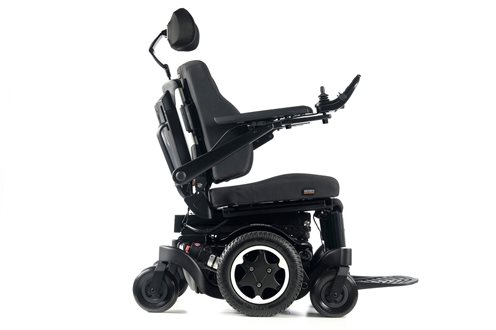

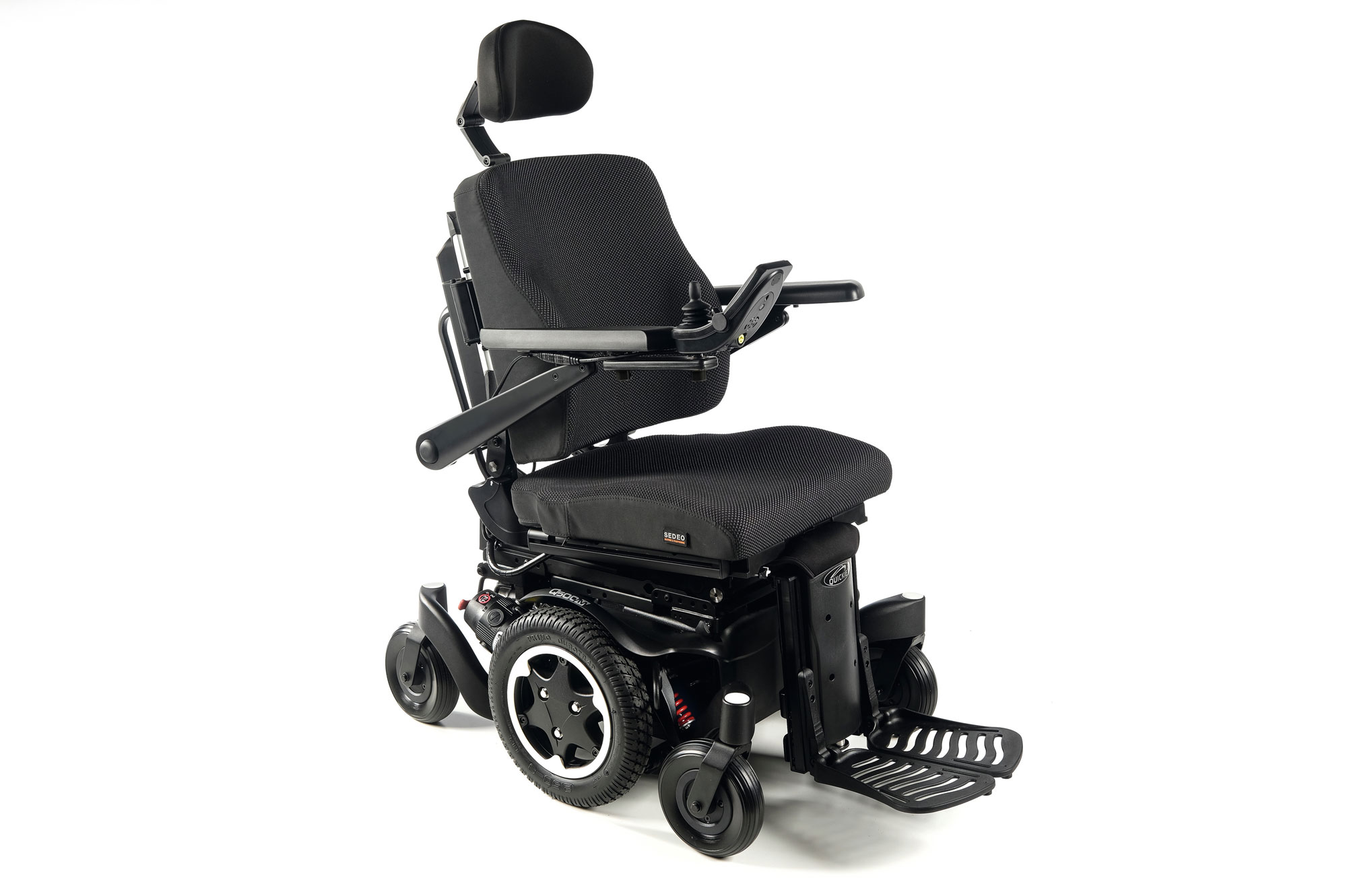

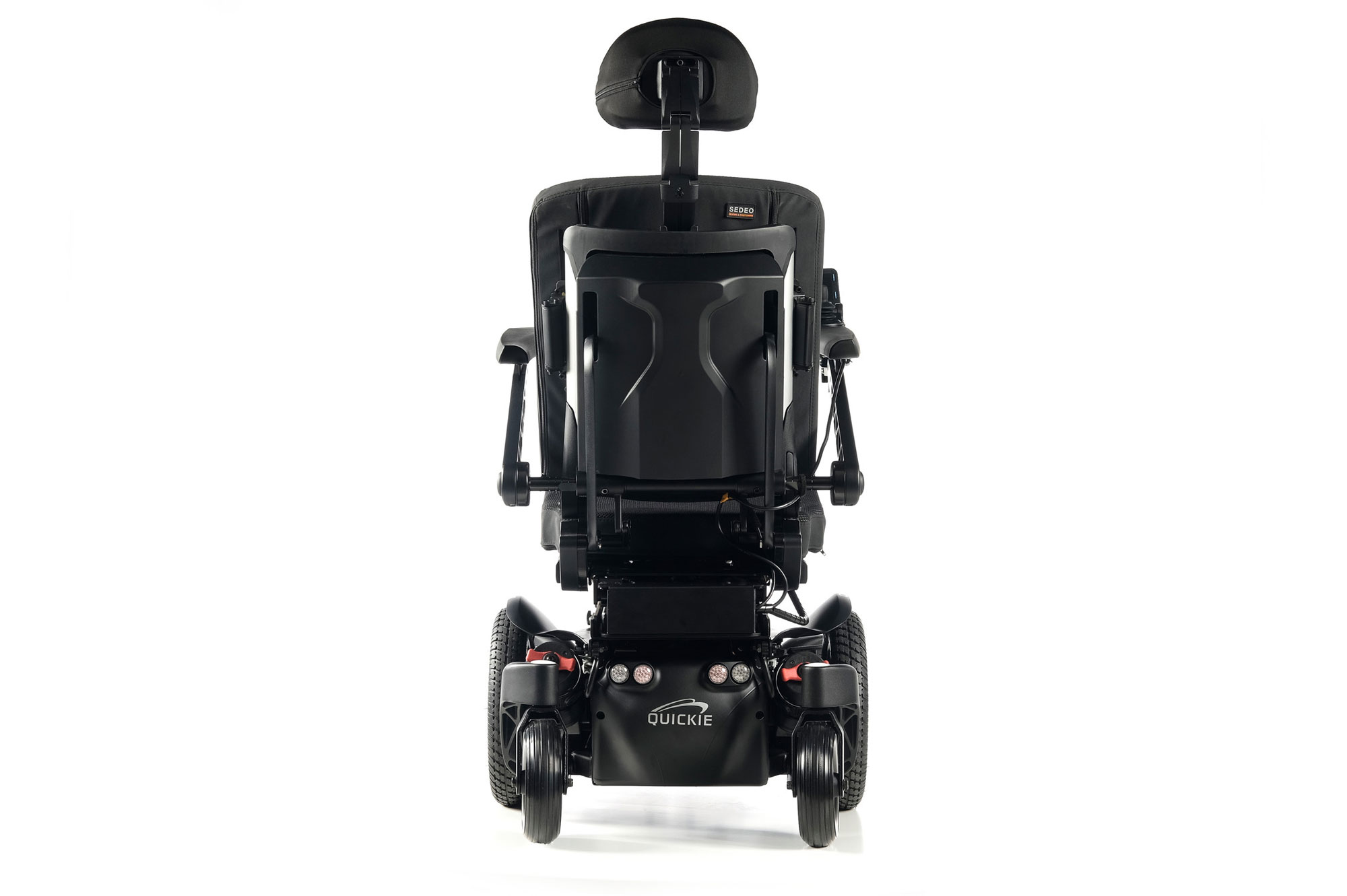

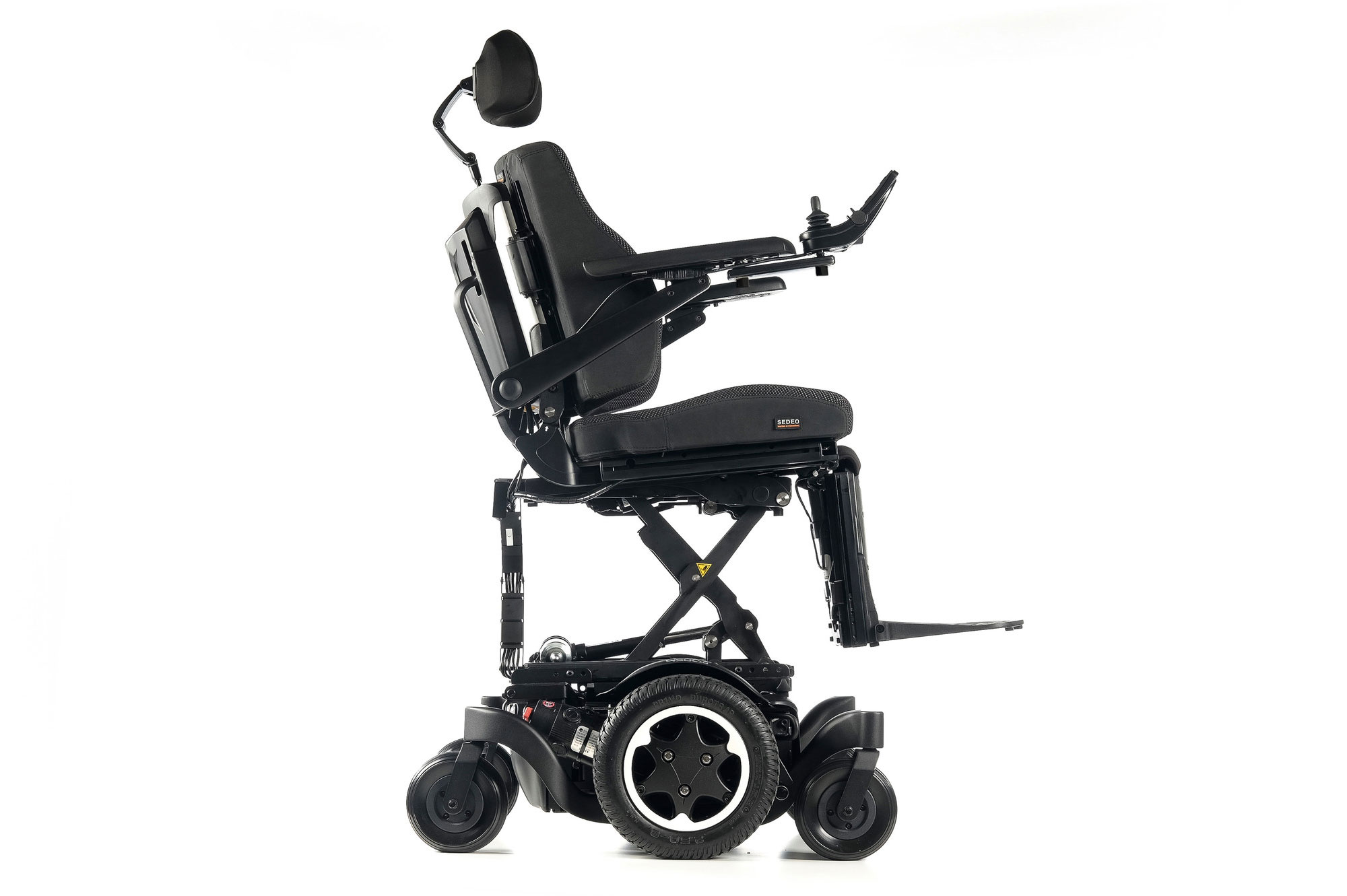

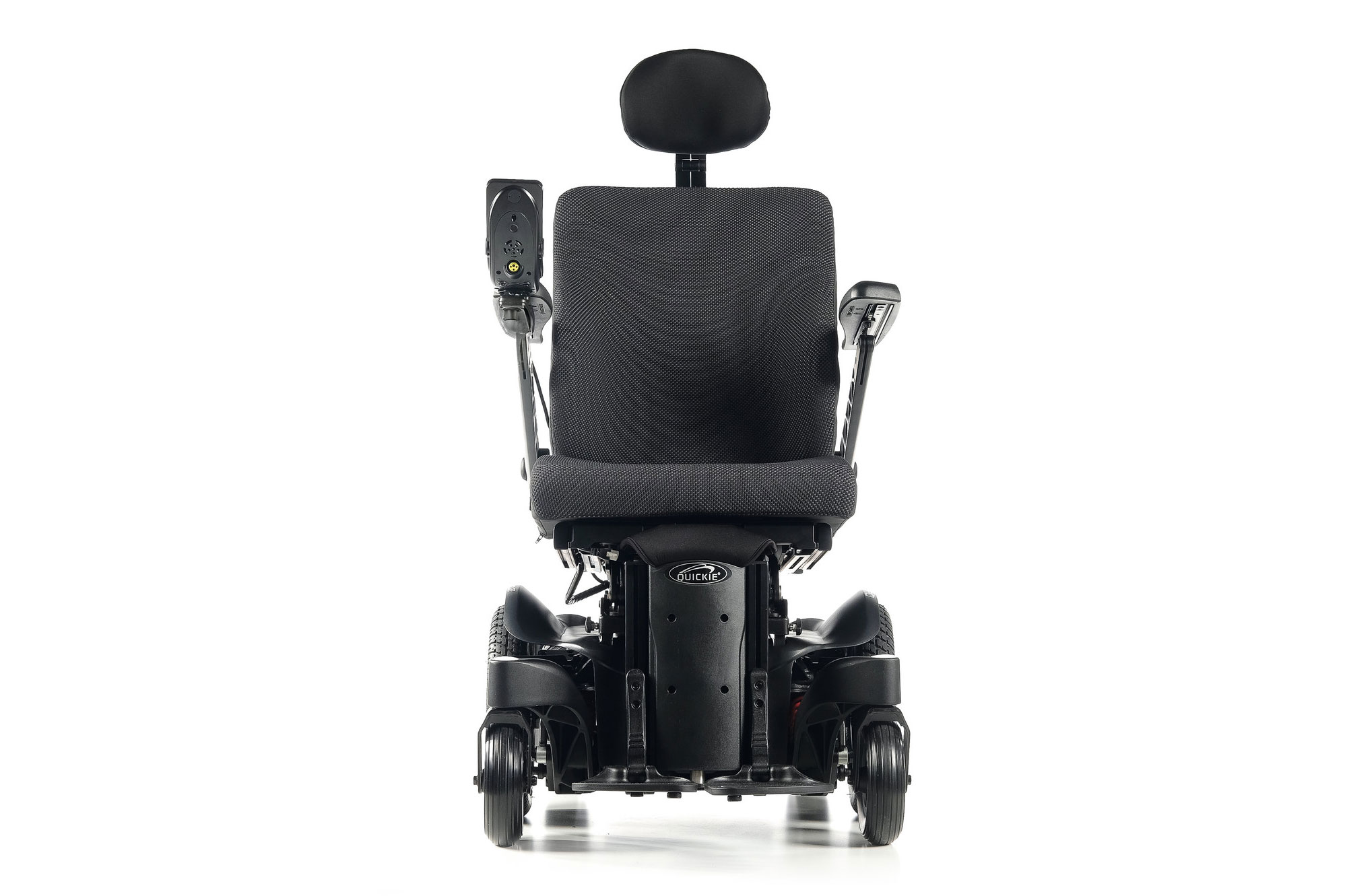

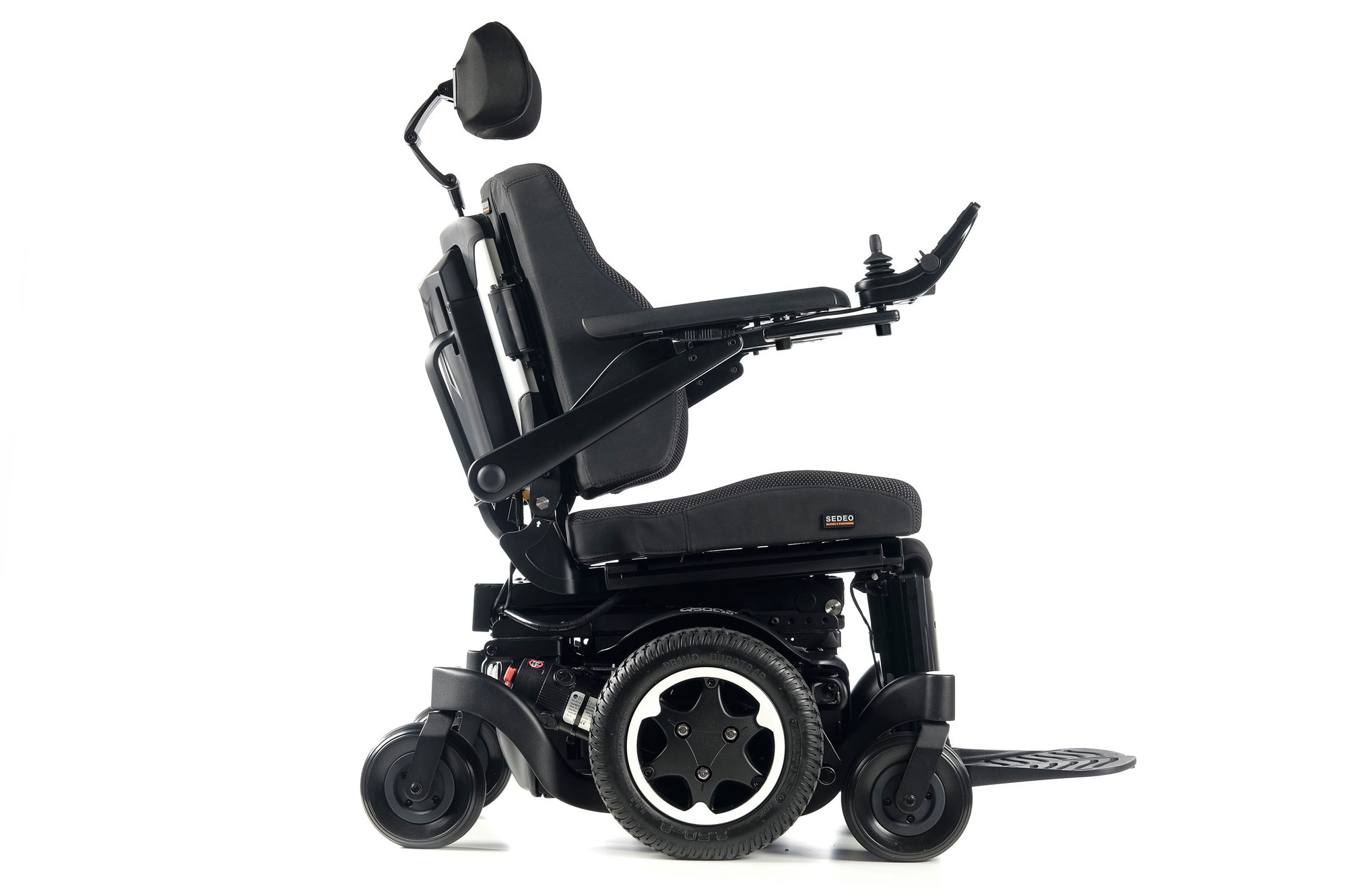

Q500 M SEDEO PRO Mid-Wheel Powered Wheelchair

Make your own adventure

Superb indoor manoeuvrability, outstanding outdoor performance, headturning style

The new QUICKIE Q500® M base balances superb indoor manoeuvrability with outstanding outdoor performance and head-turning style. All of these combined with the benefits of the highly customisable SEDEO® PRO seating and the most advanced controls, creates the perfect powered wheelchair for any adventure.

Request a brochure or demo Order Form
Crash Tested

The evolution of mid-wheel drive performance.

The new QUICKIE Q500 bases balance superb indoor manoeuvrability with outstanding outdoor performance and head-turning style. All of these combined with the benefits of the highly customisable SEDEO PRO seating and the most advanced controls, creates the perfect wheelchair for any adventure.

With ultra-reliable high torque 4-pole motors powering speeds of 6, 8, 10 or 13 kph and a choice of 60 or 80 Ah batteries to maximise your range, you can always travel in confidence with the Q500 M SEDEO PRO.

Superb indoor agility

Turning on its own axis, enjoy intuitive driving and excellent manoeuvrability in tight compact spaces with its narrow (620 mm) base and a 560-630 mm turning radius. Also, easily sit under tables and access Wheelchair Adaptive Vehicles (WAVs) with a low seat height from just 415 mm.

Outstanding outdoor performance

Enjoy a smooth and stable ride, even over rough terrain, with QUICKIE's patented all-wheel suspension - six independently suspended wheels absorb all those bumps.

QUICKIE's anti-pitch technology eliminates pitching on slopes, and with all your weight located directly above the drive wheel to maximise traction you've never been in a safer driving position.

The power to get you where you want to go.

Enjoy power and speed at your fingertips with the 4-pole high torque motors. Choose from 6 or 8 kph as standard, or upgrade to 10 or 13 kph (low torque) for the ultimate performance. Plus, with a choice of 60 Ah or 80 Ah batteries, you can maximise your range of up to 40 km and experience outdoor performance like never before!

The evolution of mid-wheel drive performance.

SEDEO PRO - Customisable Seating

The SEDEO PRO seating system combines a highly adjustable and configurable seating frame with an excellent choice of support options, including a wide range of SEDEO PRO seat cushions and backrests for mild to medium clinical needs. The SEDEO PRO is very comfortable to use and enhances user independence in everyday life.

  • The easy to operate flip back armrest gives you free transfer space. You can choose from a removable or reclining version (the latter is shown on the image to the right).
    Also available: Single post removable armrest. All compatible with 5 armpad options.

  • The SEDEO PRO offers an excellent choice of options to create the perfect fit for the user. With four backrest types, four armrest types, five legrest types and a wide range of seat and back cushions, headrest and positioning options. It can be easily customised to suit individual requirements and quickly adapted to changing needs.

  • Adjust seat depth and width, backrest angle and height, legrest angle, lower leg length, armrest height and depth, and headrest height. These adjustment options give you total flexibility and can be done quickly and easily, creating the right seating posture for you.
    All with one tool allowing for easy customisation in case of changing requirements.

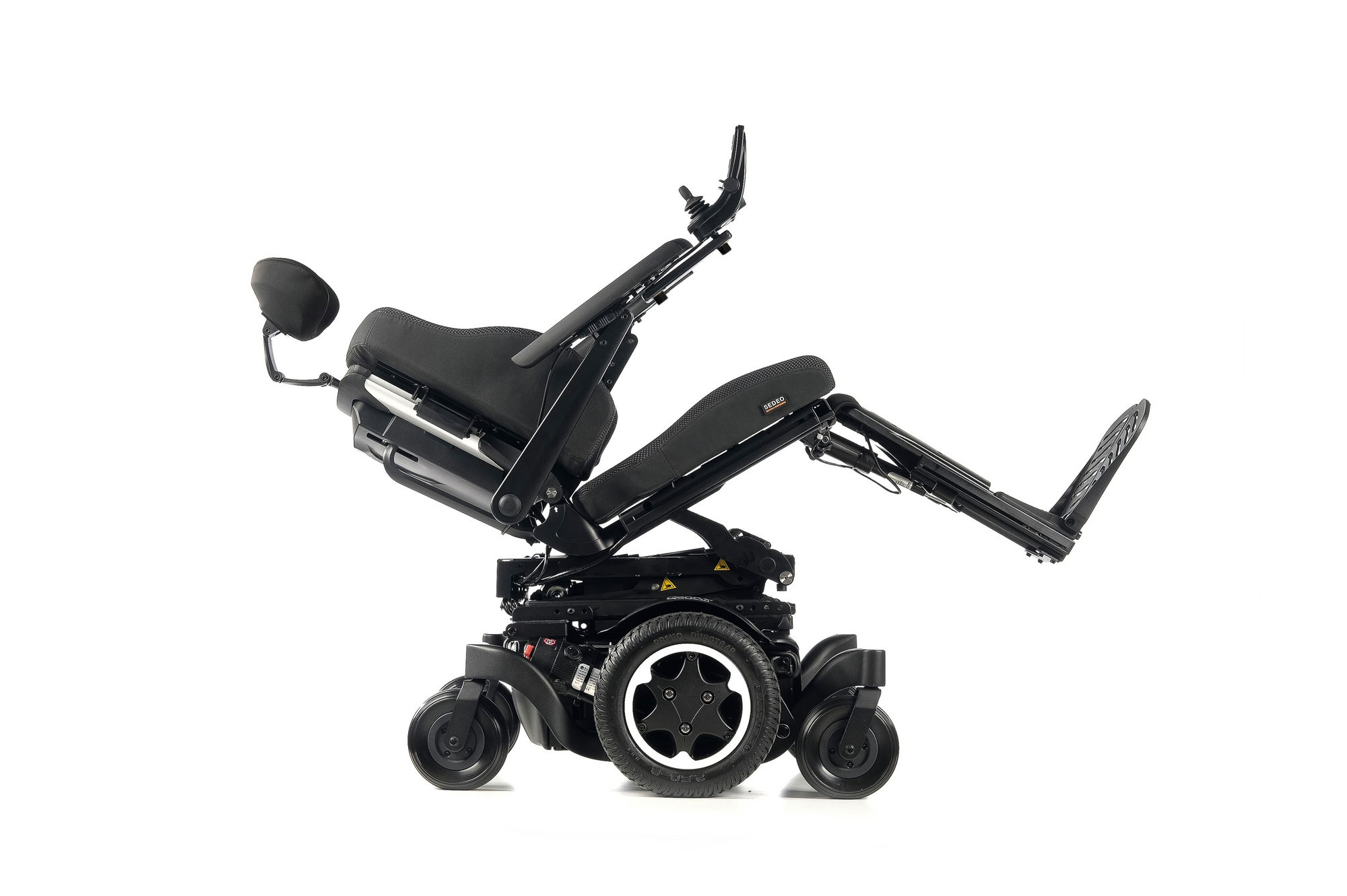

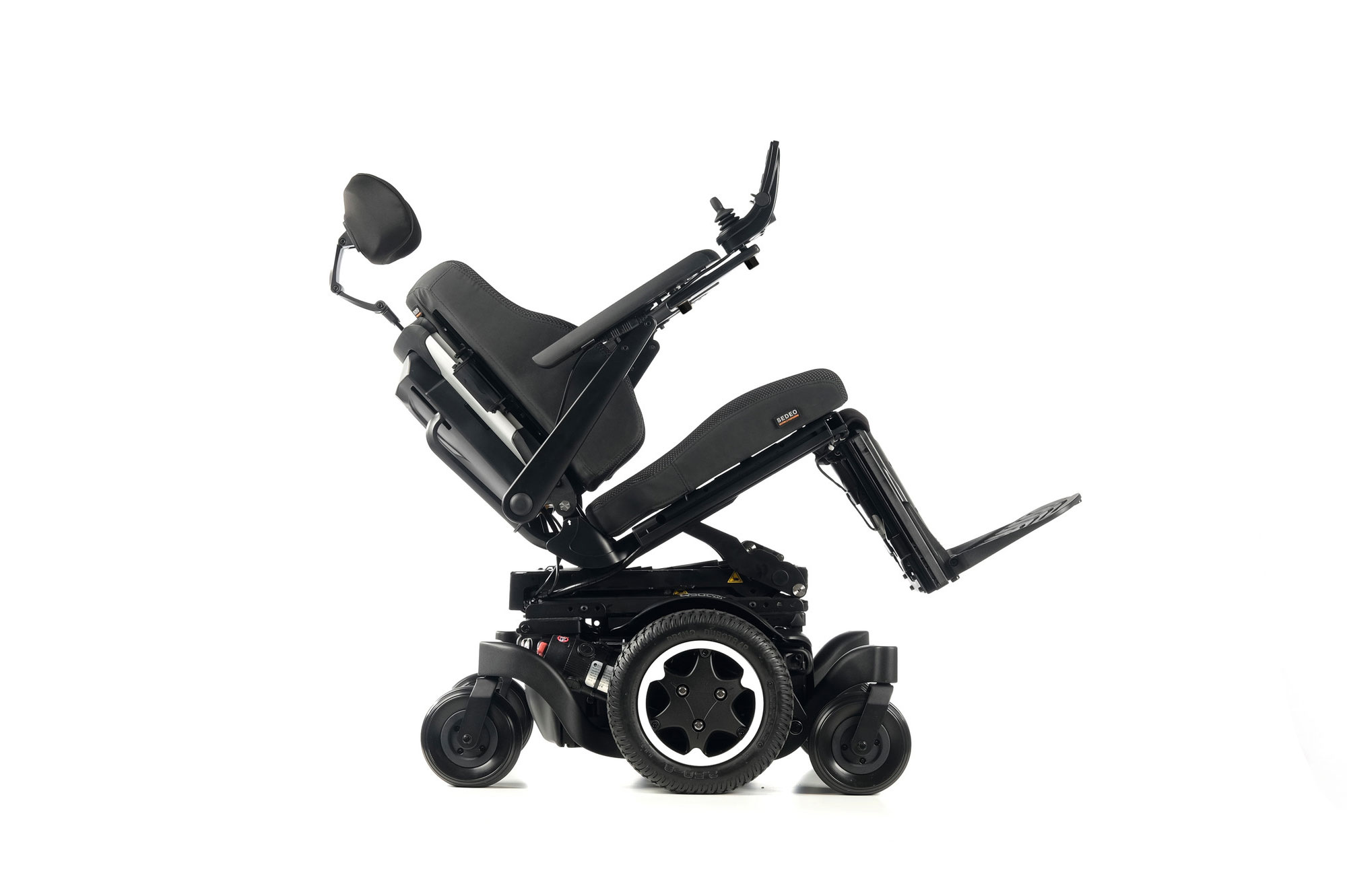

  • Discover the new powered recline backrest with 100 mm anti-shear - makes sure that there is no sliding between you and the cushion. Additionally a fixed backrest or two other reclining backrest options are available: Mechanical and with actuators.

  • The power elevating and length compensating legrest allows you to reach the best position. It is available as a centre mount and a swing away version (the latter is shown on the image to the right).
    Additionally you can also choose from a standard centre mount or 70° swing away legrest and a manual elevating swing away legrest.

  • A wide range of wheelchair seat cushions and backrest cushions is available for the SEDEO PRO seating system, including the flexible back cushion with adjustable straps and lateral support - for unique comfort and easy positioning.

  • Many positioning elements are available like SEDEO headrests & WHITMYER headrests, swing away lateral thoracic supports, thigh supports or knee supports.
    All positioning elements are easily swing away or detachable.

SEDEO PRO - Customisable Seating

Control at your fingertips

Control your environment with the Q500 M SEDEO PRO and its advanced controller technology. Available with the reliable VR2 control and the superior R-Net advanced joystick, the large, easy-to-read HD display and simple to control paddle switches allow for intuitive operation.

CONNECT

Seamlessly take control of your environment using the integrated Infra Red functionality. Control your TV, docking stations and other home entertainment systems easily via your joystick.

BLUETOOTH & IDRIVE

Control your phone, computer, tablet and any other Bluetooth and i-devices with this useful optional extra. Connect and control up to four devices.

QUICKIE PATENTED ASSIGNABLE BUTTONS

Change the function on any button on your joystick to any command you desire, thanks to QUICKIE's patented assignable buttons. You can also assign a second (long press) function to buttons, for quicker, simpler and smoother access to commonly used functions without having to use your joystick.

Switch-It Controls

If driving with a traditional joystick is not the best option, alternative drive controls allow you to fully experience your Q500 M SEDEO PRO powered wheelchair's driving capabilities and benefits.

Find out More
Switch-It MicroGuide Mini Proportional Joystick

SWITCH-IT MicroGuide

The Mini-Proportional Joystick with a light operating force

Switch-It MicroPilot Joystick

SWITCH-IT MicroPilot

The Mini-Proportional Joystick with pure force operation

VersaGuide Compact Joystick by Switch-It

SWITCH-IT VersaGuide

Compact proportional control

Dual Pro™ Head Controls by Switch-It

SWITCH-IT Dual Pro™

Truly proportional head array for intuitive driving

Switch-It Switched Head Arrays Head Controls

SWITCH-IT Switched Head Arrays

Switched head control

Switch-It TouchDrive 2 Drive Controls

SWITCH-IT TouchDrive 2

Touchscreen proportional controller

Switch-It Ctrl+5 Switch for wheelchairs

SWITCH-IT Ctrl+5 Switch

Convenient access to programmable power wheelchair functions

Link-It Mounting Systems

SWITCH-IT Link-It Mounting System

Mounts input devices to a power wheelchair

Switch-It Chin Boom Mounting System

SWITCH-IT Chin Boom Mounting System

Powered & manual swing away chin control mechanism

Switch-It Allround Joystick

SWITCH-IT Allround Joystick

Multifunctional wheelchair joystick

Arrange a QUICKIE Q500 M SEDEO PRO demonstration today.

Just want a brochure? Select the option below and we'll email you one instead. Under 18? Please don't provide us with any personal information. Read more about our data processing guidelines on our privacy policy.

How do we use your information for a demonstration?

Sunrise Medical will use your details to send you an email acknowledgement and to contact you to arrange your demonstration with a Sunrise Medical dealership. Don't worry, we won't pass your personal data to anyone before speaking to you first and asking for your consent. The information you give us will be stored in the UK and will be kept as long as necessary to fulfill your request (and no-longer than 1 year).

Sign up for email newsletters

Dimensions
Width:610 - 620 mm
Length:1280 mm
Seat Width:380 - 560 mm
Seat Height:415 - 490 mm
Seat Depth:400 - 560 mm
Backrest Height:440 - 560 mm
Back Recline:90° to 150°
Turning Diameter:560 - 630 mm
Performance/Weights
Max. Range:Max. 40 km (with 80 Ah batteries)
Speed:6/8/10/13 kph
Batteries:60 Ah, 80 Ah
Maximum Safe Slope:
Max Kerb Climb:100 mm
Electronics:VR2, R-Net
Min. Wheelchair Weight:140 kg
Maximum User Weight:160 kg
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19
