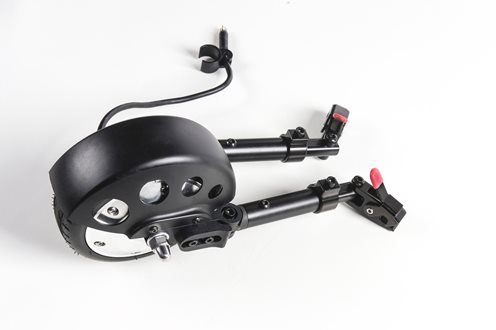

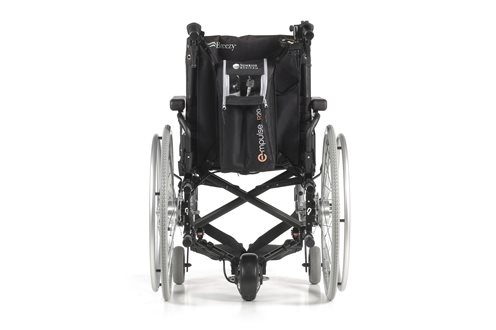

Empulse R20Caregiver Assist

Unique folding push device

Pushing your life

With the new Empulse R20 pushing aid it has never been so easy to support the attendant pushing the wheelchair. Whether uphill, downhill or long trips, the R20 helps in every situation. Combining a unique folding function, the lightweight R20 is under 5 kg providing easy transportation and literally no impact when self propelling your wheelchair.

The R20 is compatible with almost any wheelchair that has a box frame and a tube diameter of 22-28 mm.

Request Brochure Order Form

Lifestyle

Pushing has never been so easy

Whether uphill, downhill or long trips, the R20 helps in every situation. Combining a unique folding function, the lightweight R20 is just 5 kg providing easy transportation and literally no impact when self propelling your wheelchair.

More Features

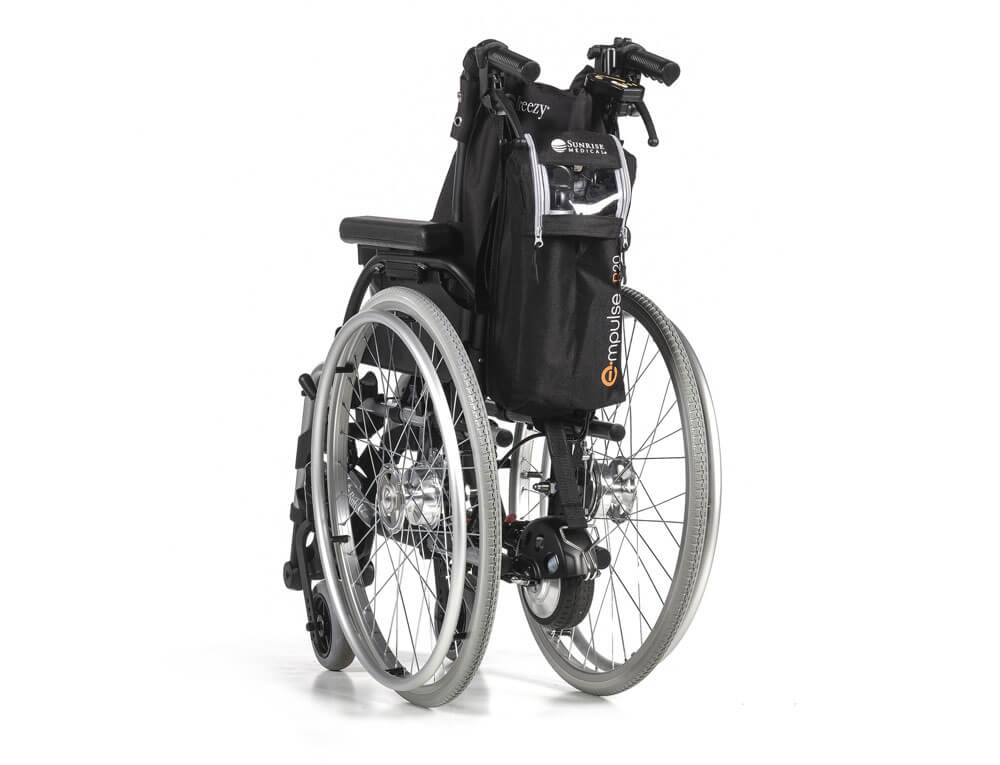

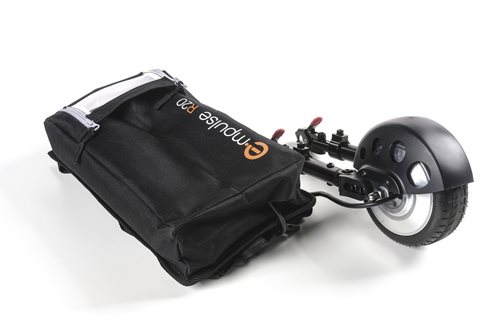

Foldability

Unique foldability

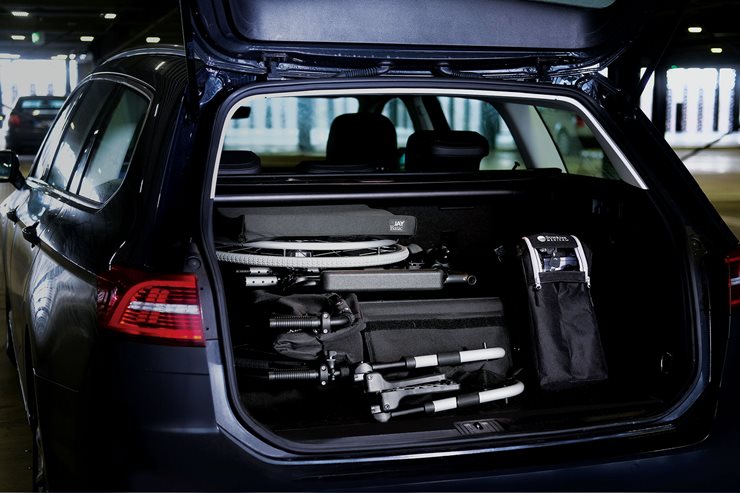

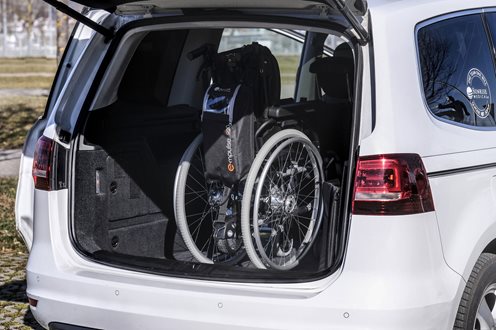

The R20 is the only foldable push device on the market. Easy transport, even when still attached to the wheelchair. The click fix docking system allows easy docking without using any tools. Only the small docking pin remains on the wheelchair which means low weight, no visibility and nice design.

Shown here with the Breezy RubiX².

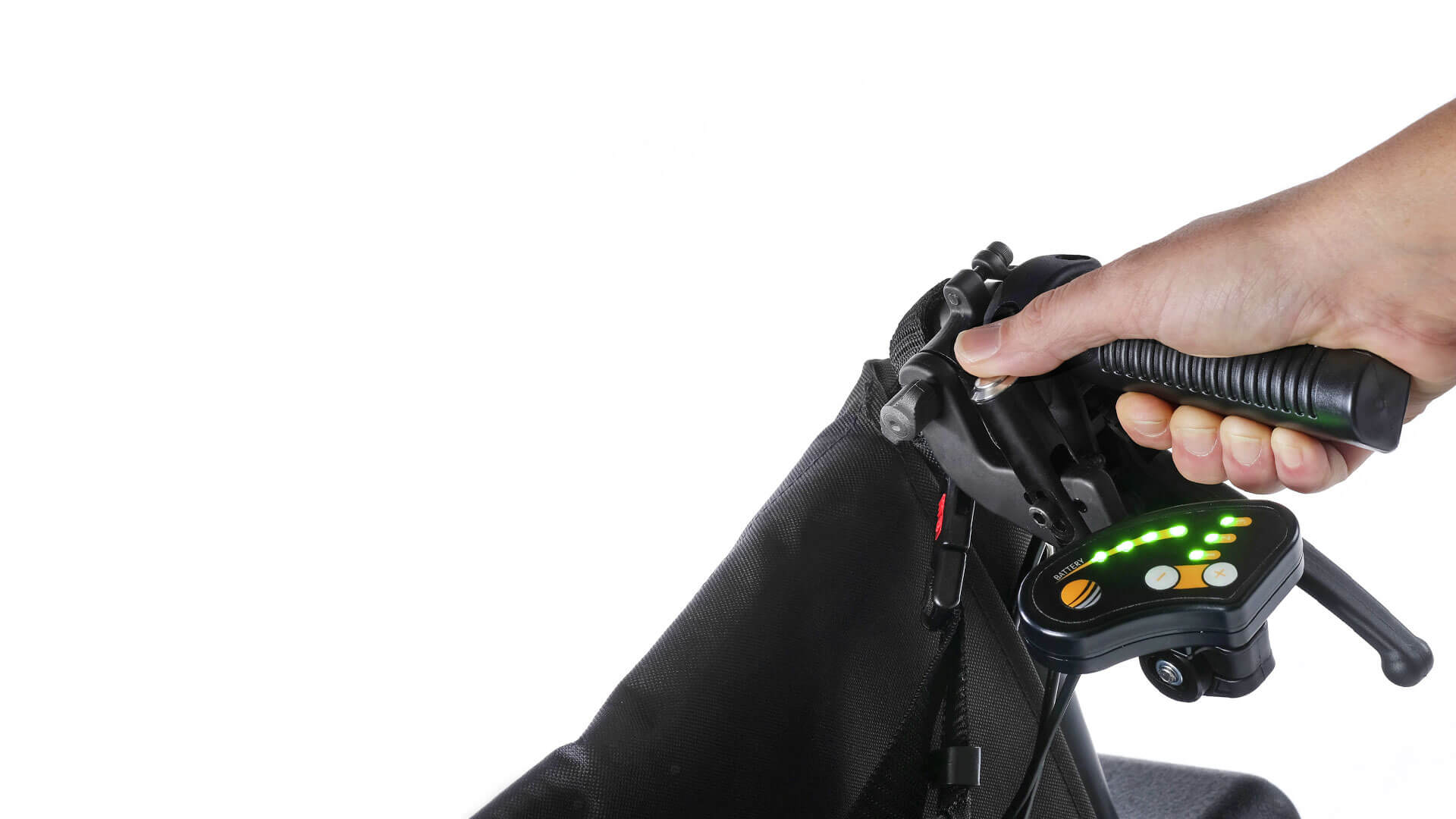

Controls

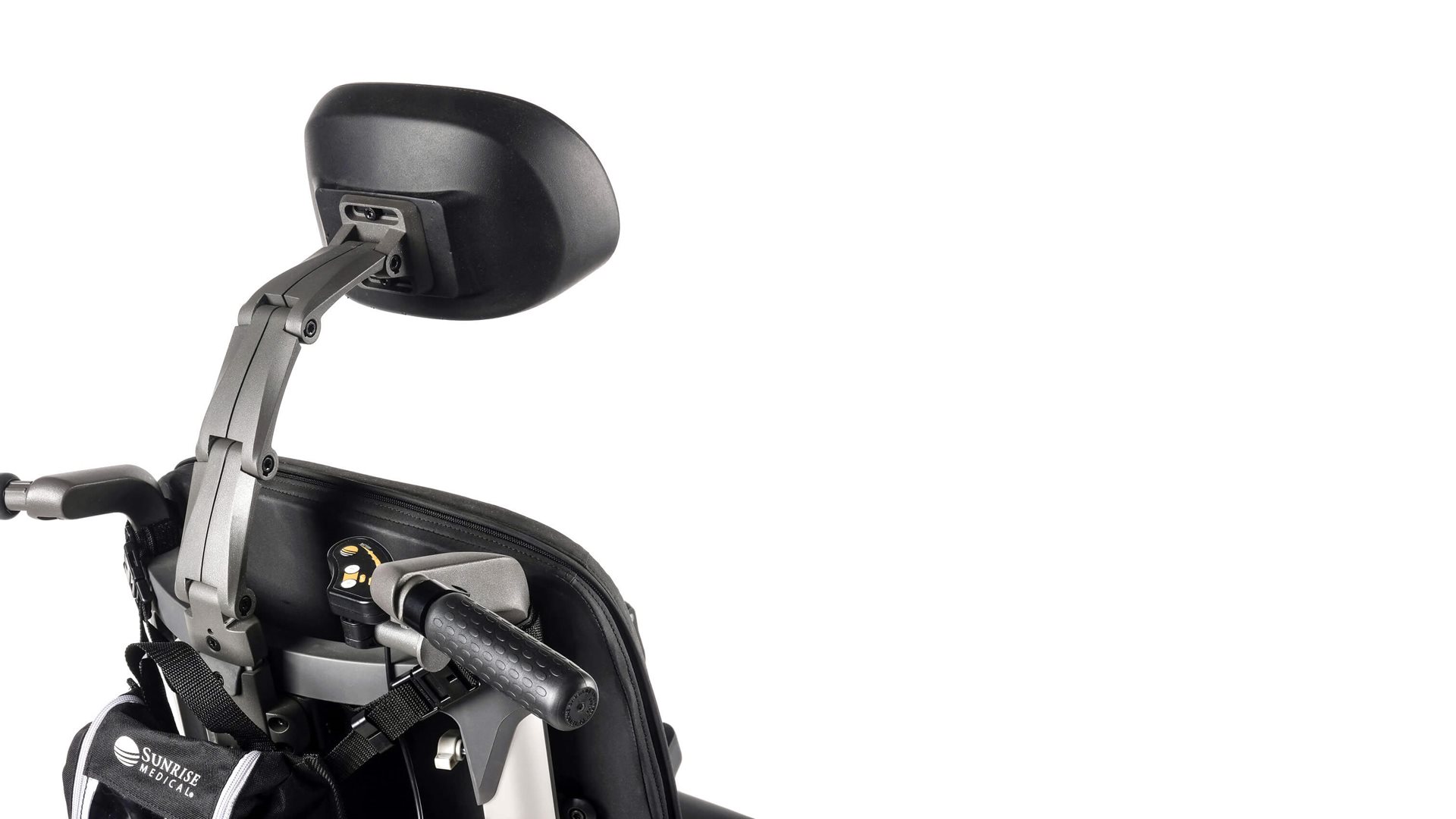

Display with battery capacity and speed range indication

Easy speed range setting for 2 / 3,7 / 5 km/h.
Easy one button on/off control for save handling, easy operation.
Quick release of control unit for easy, save transport without disconnecting cable.
Adjustable position for optimal accessibility, visibility and comfort.

Compatibility

High compatibility

The push device fits on almost any wheelchair (box frame, tube diameter 22-28 mm). You can turn it on by pushing the button, then the R20 is moving forward.

Receive a Brochure and Price Guide by Email

Read more about our data processing guidelines on our privacy policy.

How do we use your information for a brochure request?

Sunrise Medical will use your details to send you an email with the brochure and price guide that you've requested. We'll never disclose or share your personal data with anyone else. Your information will be stored in the UK and will be kept for 3 days.

They're great together.

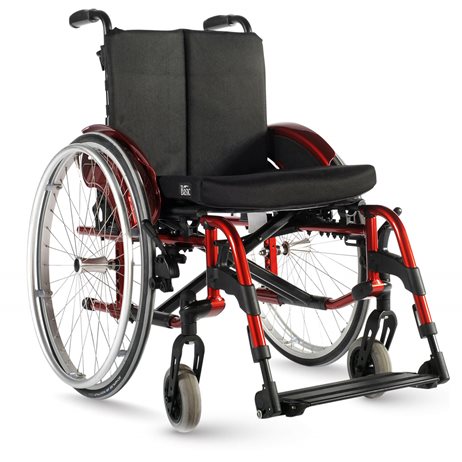

QUICKIE HeliX²

The configurable active chair designed for efficient fleet use.

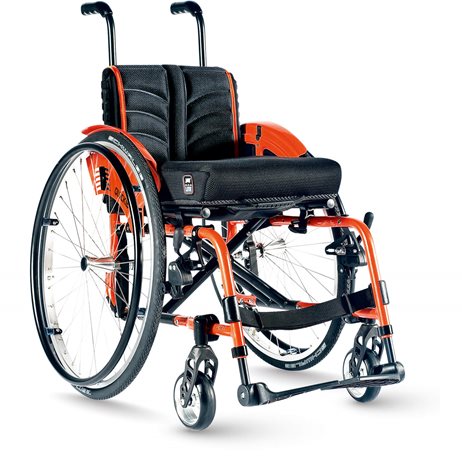

QUICKIE Life T

The folding wheelchair for a teenager's active life.

QUICKIE Life R

Lightweight, with a rigid and durable frame and a modern look of an active wheelchair

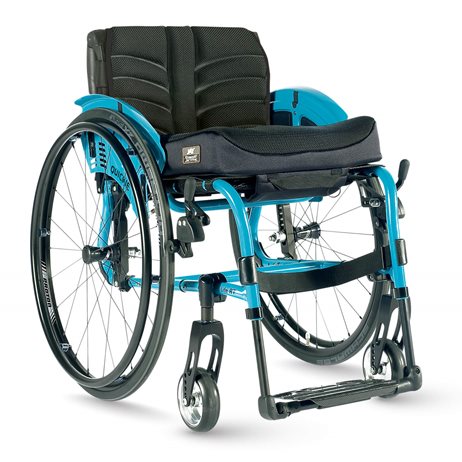

QUICKIE Life RT

The rigid wheelchair for a teenager on the move.

ZIPPIE Youngster 3

The lightest folding wheelchair with growth adjustability.

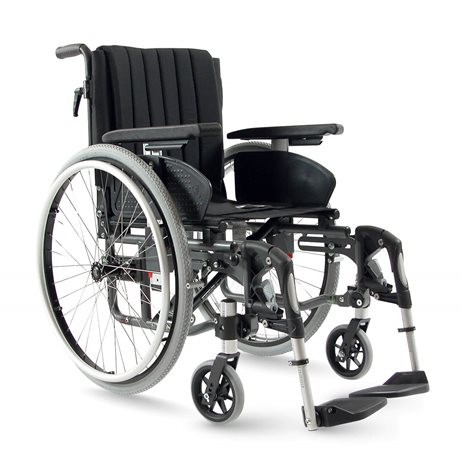

BREEZY Exigo 30

Your choice wheelchair for ultimate adaptability. Also designed for a maximum user- Exigo 30X

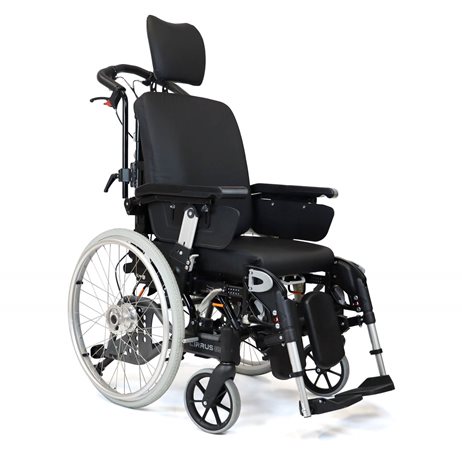

BREEZY Cirrus G5

Comfort and flexibility throughout the day

BREEZY BasiX²

The economical and easy to re-use standard manual wheelchair.

BREEZY RubiX²

The lightweight wheelchair for highly individual needs

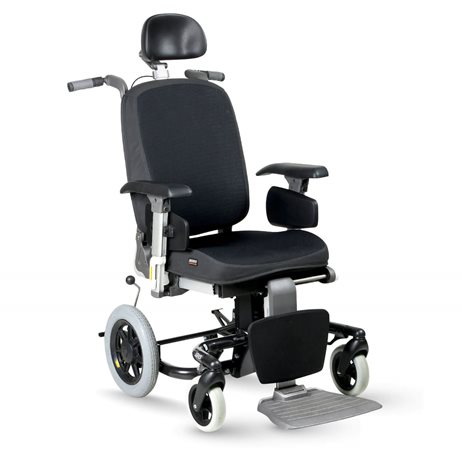

BREEZY Ibis

When comfort can make a difference.

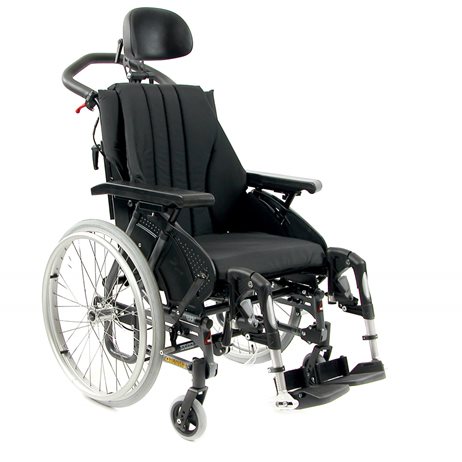

BREEZY Emineo

The benefits of an adaptive wheelchair and comfort wheelchair in one design.

QUICKIE QS5 X

Experience FreeFold and save over 40% energy with every fold!

Media

Specifications

Dimensions

Seat Width:320 - 600 mm

Drive Wheel:6ʺ

Performance/Weights

Max. Range:15 km

Speed:5 km/h (adjustable in three steps: 2/3.7/5 km/h)

Batteries:5.8 Ah / 36 V (209 Wh) - Lithium Ion

Maximum Safe Slope:10° / 18%

Max Kerb Climb:50 mm

Electronics:Charger 100-240 V AC: 36 V & 1.35 A

Min. Weight:3 kg (Motor and brackets)

Total Weight:4.5 kg

Maximum User Weight:190 kg (Load: User & Wheelchair)

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
