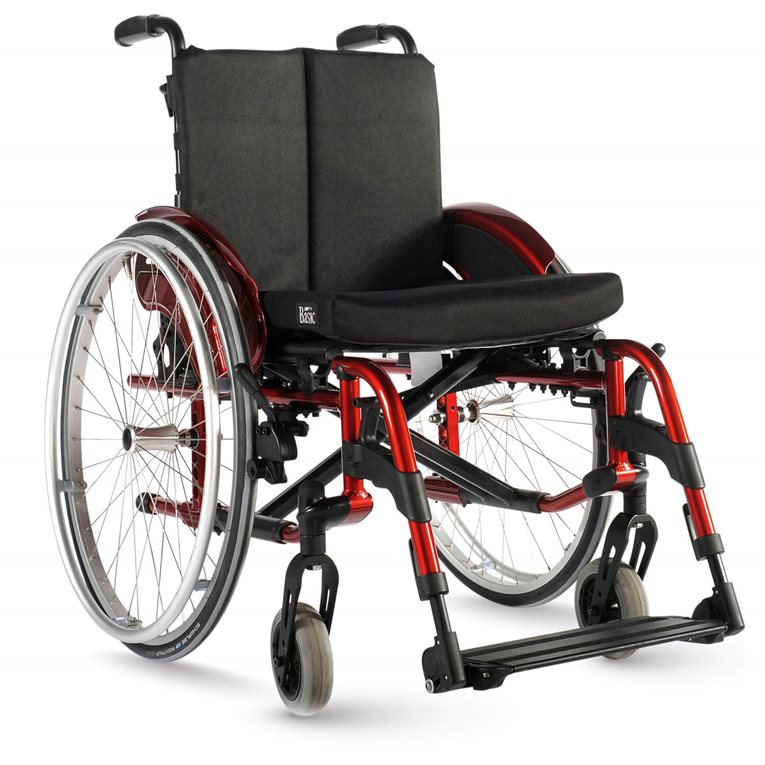

Helix 2Folding Wheelchair

The configurable active chair designed for efficient fleet use.

HeliX² - the configurable, adaptive wheelchair that combines the strength of the RubiX² with a variety of active lifestyle options (including a choice of lightweight wheels, castors and tyres, optional angle adjustable backrest and tension adjustable back sling and back height adjustment). Also, the angle-adjustable castor fork is positioned outwards, to help maximise legroom.

Request Brochure

Crash Tested Quickie HeliX² adaptive wheelchair
Adaptable back upholstery

Adaptable back upholstery

The HeliX² is equipped with an adjustable 7-strap back upholstery. This enables optimum adaptation to the user's back for better positioning whilst in the wheelchair.
Flexible axle plate

Flexible axle plate

The axle plate of the HeliX² can be easily adjusted for both seat height and centre of gravity, allowing for optimal positioning for the user.
Active lifestyle options

Active lifestyle options

Choose from a selection of lightweight stylish wheels, castors and tyres to reflect your active lifestyle.
Castor fork connection

Castor fork connection

The castor fork not only has increased levels of adjustment, but it's also attached by M8 bolts for added stability.
Dimensions
Width:SW + 20 cm
Seat Width:38-52cm
Seat Depth:41-51cm
Front seat height:35,5-53cm
Rear seat height:35,5-53cm
Seat Angle:0° - 6°
Backrest Height:35 - 50 cm
Backrest Angle:-5° - +20° (optional)
Frame Inset:-
Camber:0° / 3°
Colours:3colours
Performance/Weights
Frame Type:70° / 80°
Maximum User Weight:125 kg (170KG XL version)
Total Weight:from 15,1 kg
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Frequently Asked Questions

The total width of your wheelchair can be found in the user manual (or in the ordering documentation of your wheelchair). What is important to know when it comes to manual wheelchairs is if you have a camber, the overall width increases rapidly. For example, a wheelchair with 6 degrees camber and 24 "wheels, becomes 80 mm wider than a chair with 0 degrees camber.

Please consult your user manual for more information on setting changes for your wheelchair.

Yes, our Built-4-Me team can help you achieve requirements that go above and beyond what you would find on the typical product order form. They'll make every effort to provide you with the most suitable solution to your request.

We'd recommend that your wheelchair is serviced by an authorised Sunrise Medical dealership every year. For your safety, some elements of your wheelchair should be checked regularly. Please refer to your user manual for more information.

Ultra-lightweight wheelchairs tend to be made of areospace-grade aluminum or carbon fibre, so they're stronger whilst not compromising the weight of the wheelchair. More durable, ultra-lightweight wheelchairs are custom-built to your needs and are highly customisable with a wealth of features and style options. QUICKIE's range of ultra-lightweight wheelchairs also employ a range of unique patented features to further strengthen the frame whilst minimising weight (such as ShapeLoc Technology on the Xenon series or X-Braid Technology on the Krypton).
