QUICKIE QS5 XFolding Wheelchair

Experience FreeFold and save over 40% energy with every fold!

Experience FreeFold and save over 40% energy with every fold!

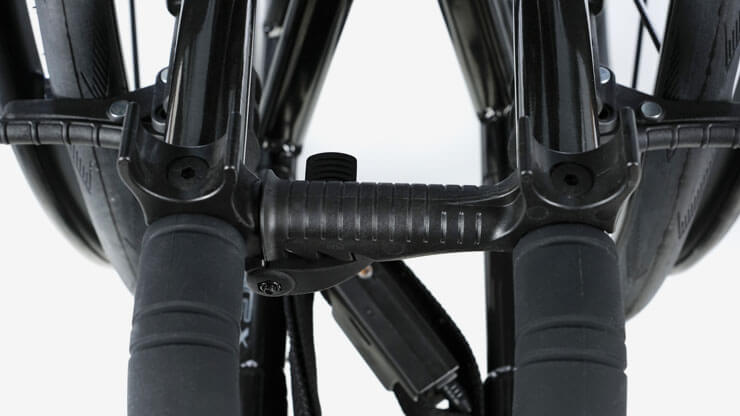

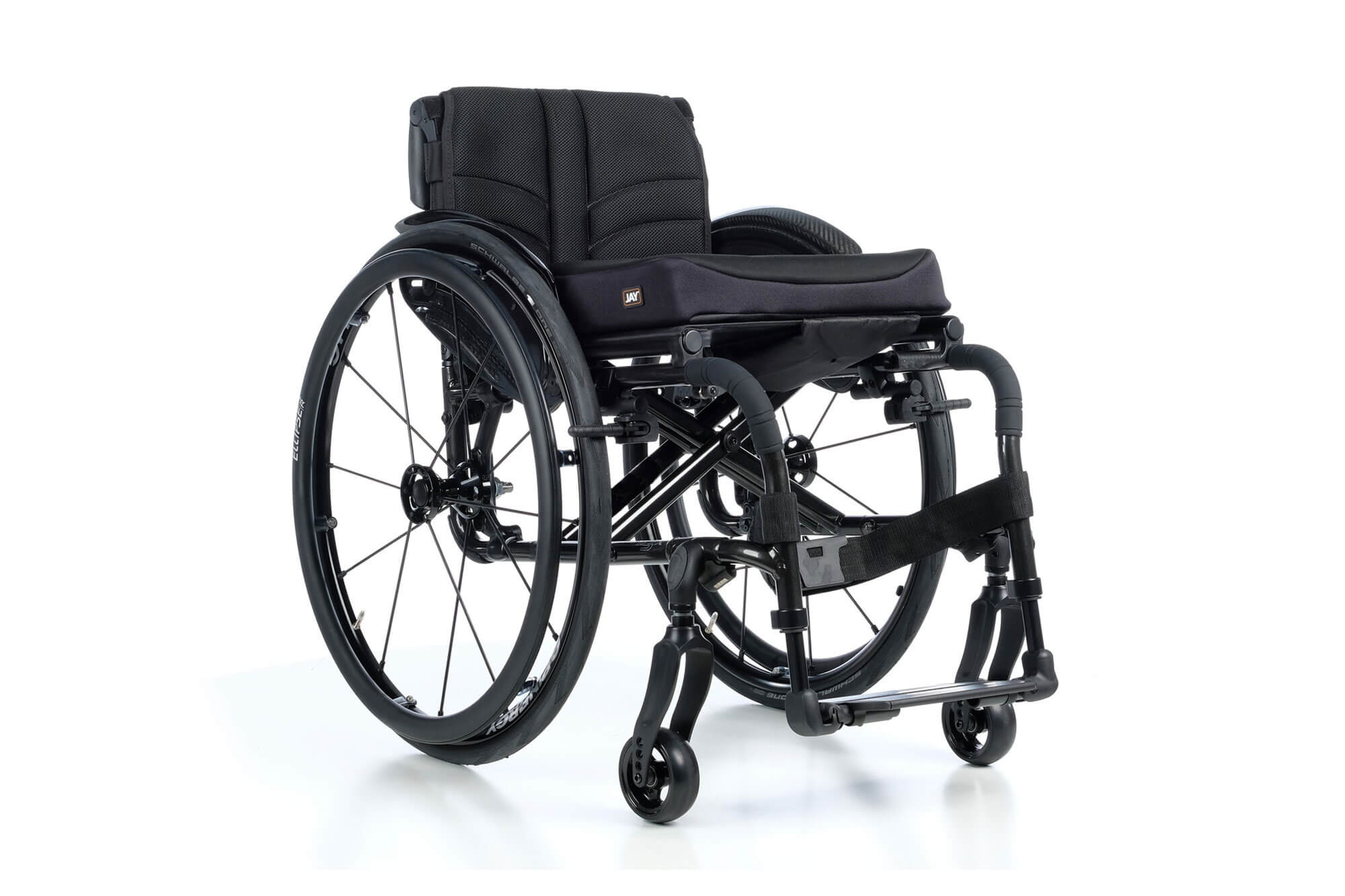

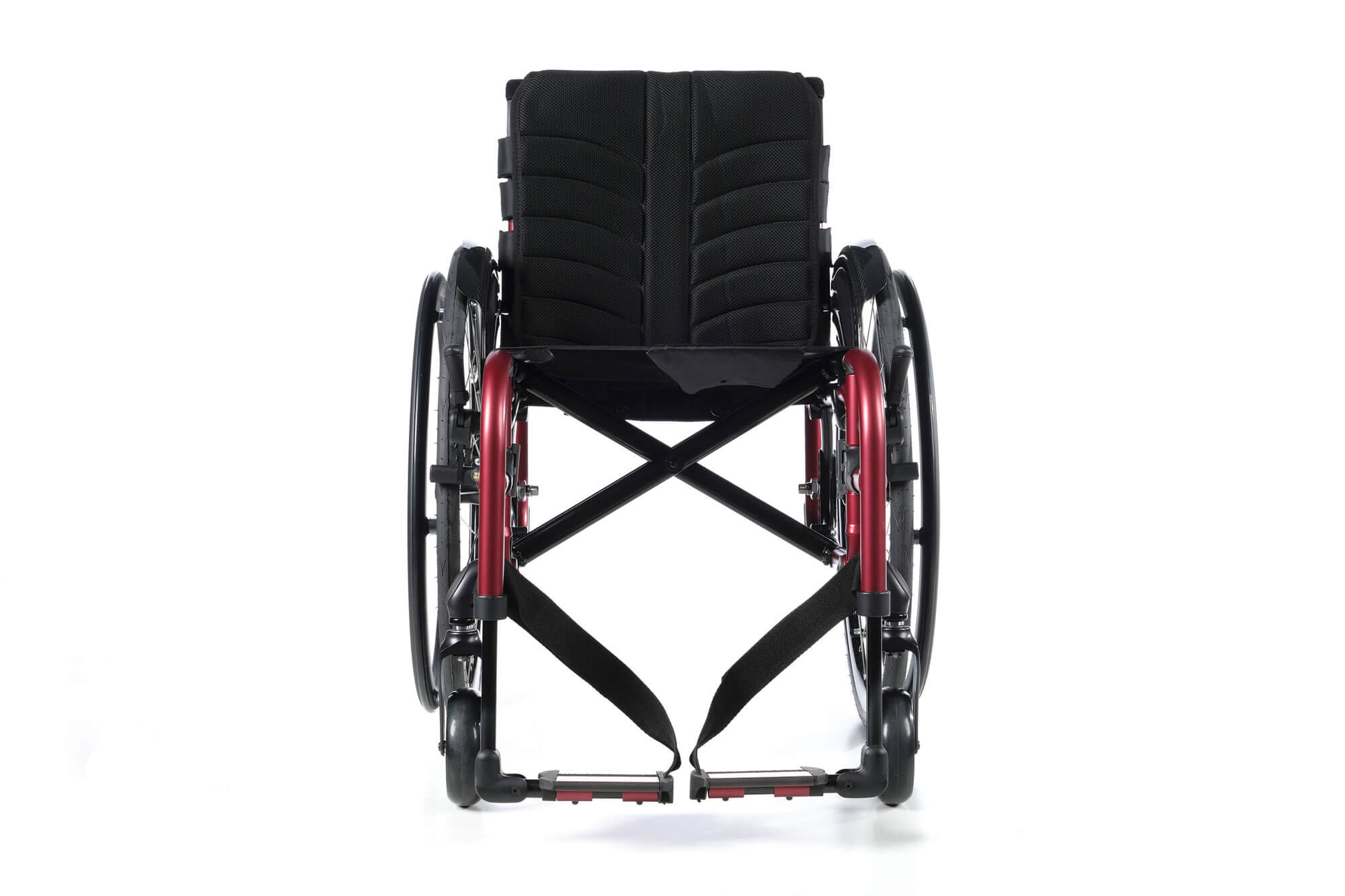

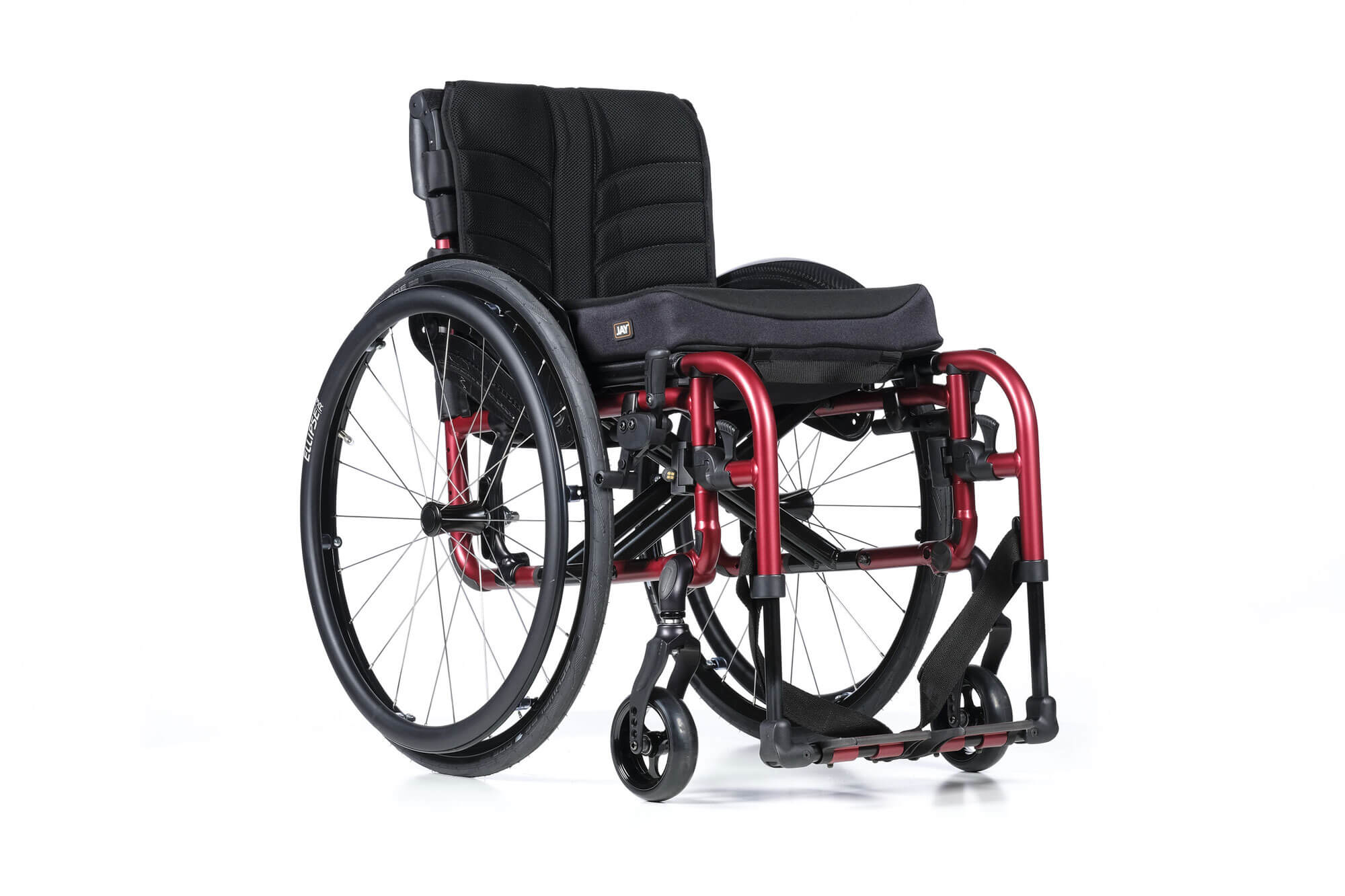

Introducing the QUICKIE QS5 X, the wheelchair that redefines easy folding thanks to FreeFold - an innovative cross-brace design that reduces folding forces and saves you over 40% energy with every fold! The QS5 X makes light work of lifting too, with an (optional) folding fixation that keeps your wheelchair tightly-locked to prevent any unintentional opening during transport.

Weighing from just 7.3 kg (without wheels), it's the lightest aluminum box frame wheelchair too. Made from heat-treated 7000 series Aluminium, lock-out the frame and its oval-tubed 4-arm cross brace provides the ride performance to rival any rigid wheelchair. Saving not just energy, but your shoulders too.

Request Brochure
Crash Tested

3D Visualizer

Unleash your individuality and create your own QS5 X!

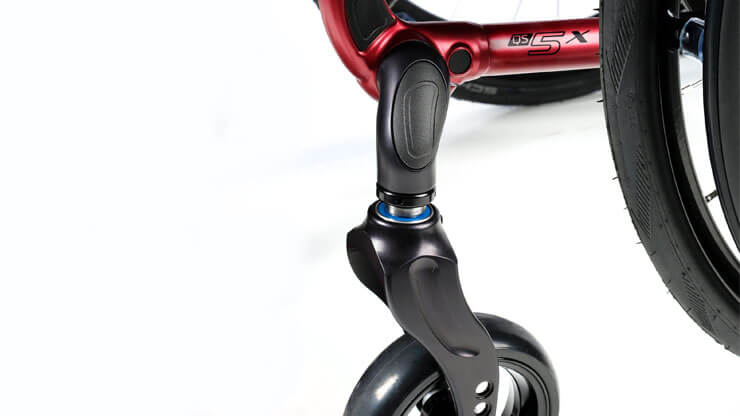

From push handles to castor forks, our online QUICKIE QS5 X visualizer will help you to create the QS5 X of your dreams! Style your ride with 24 vibrant frame colours, 4 castor fork and 4 rim colours. You can even match your cross-brace colour to your frame! Just click the button below to begin.


Unleash your individuality and create your own QS5 X!

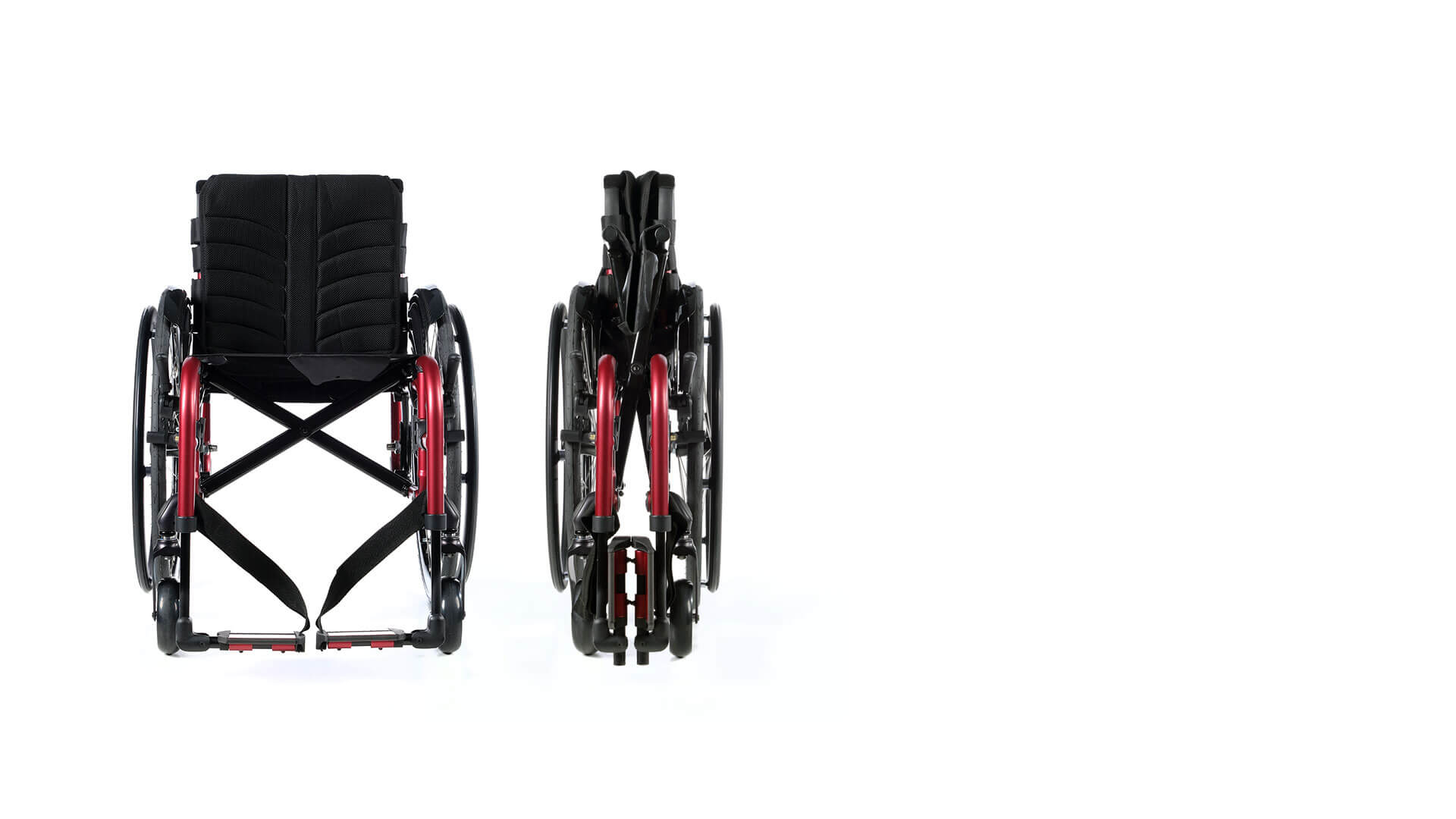

Folding Performance

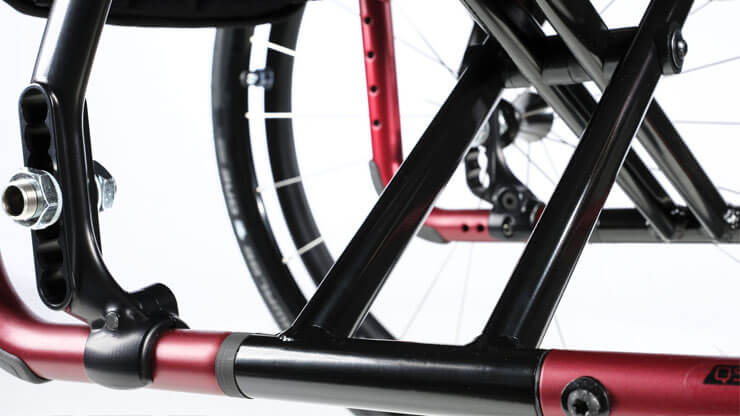

FreeFold - Over 40% energy saved with every fold.

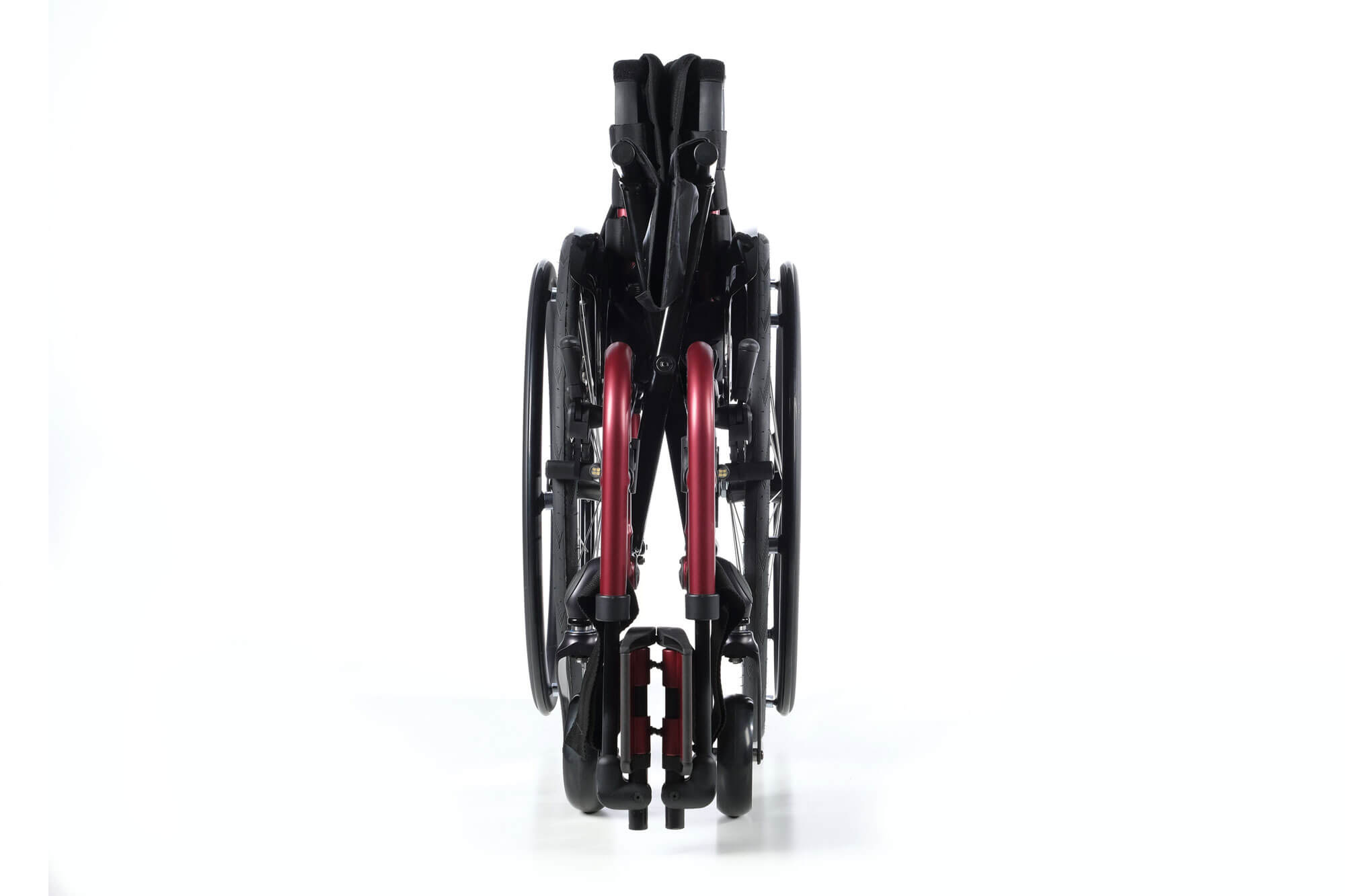

Easy to fold and stays folded - thanks to the innovative FreeFold feature. FreeFold stands for sophisticated and precise engineering of the folding geometry, resulting in particularly little force when folding and unfolding. During folding, the wheel camber does not change and the folded wheelchair stands solidly on the ground - a real benefit if you are frequently folding and transporting your QS5 X.

FreeFold - Over 40% energy saved with every fold.

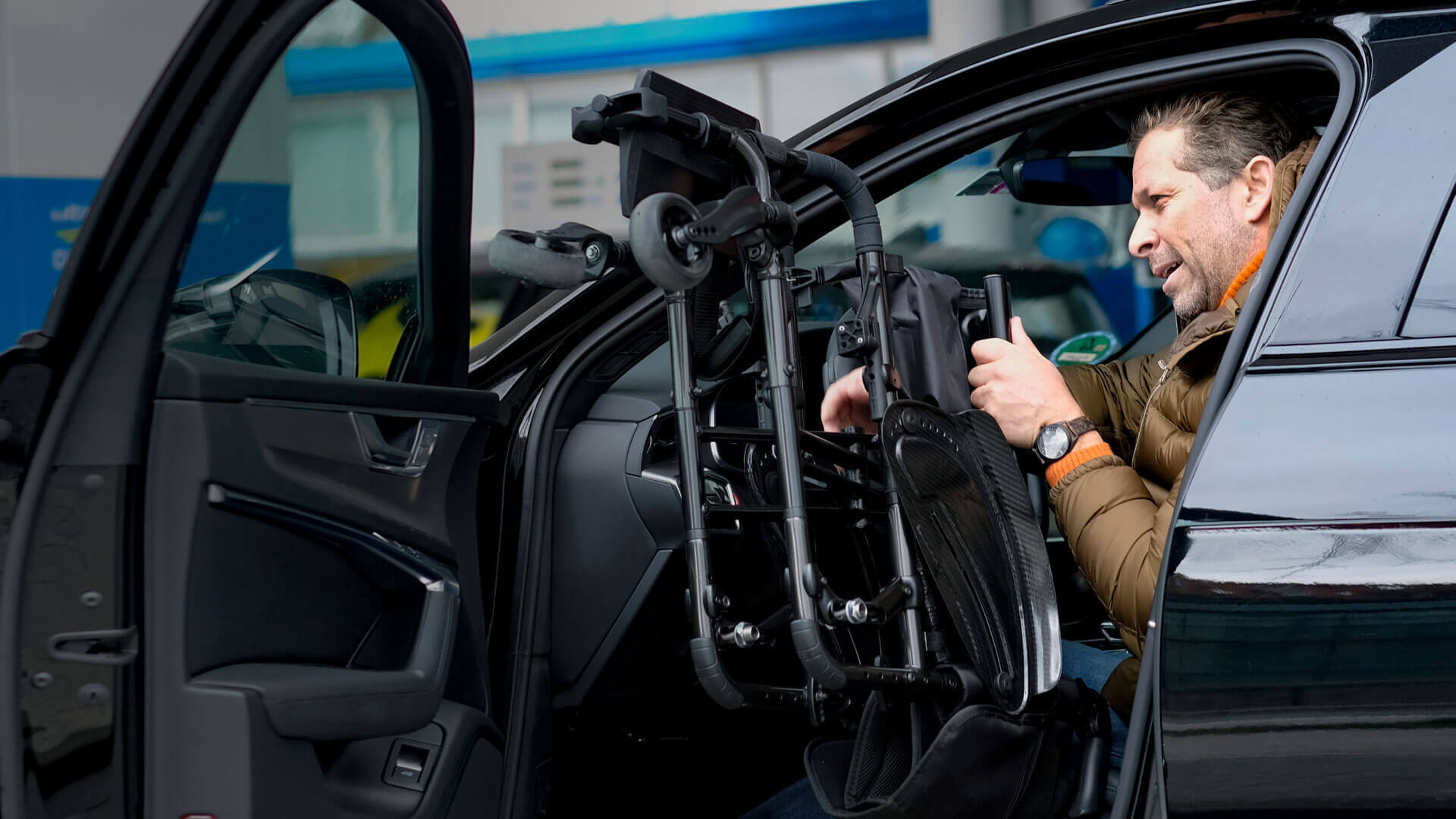

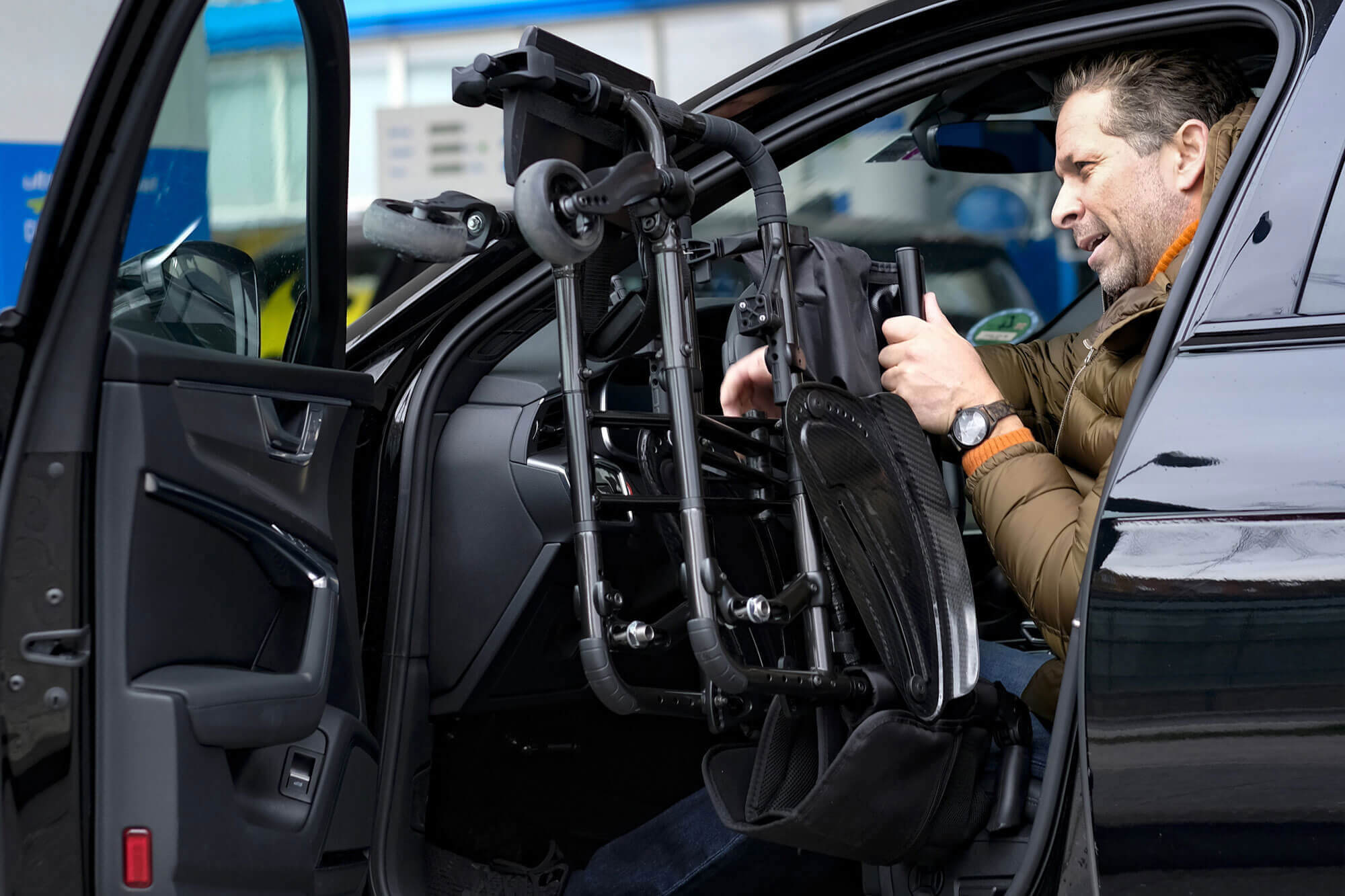

Easy propelling and lifting with the featherweight QS5 X.


Easy propelling and lifting with the featherweight QS5 X.

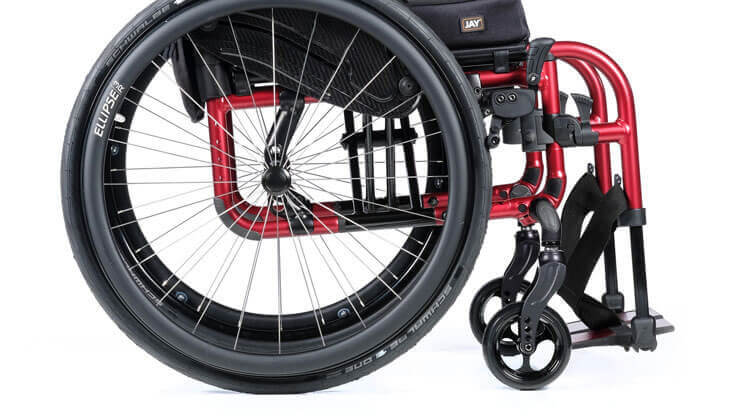

Unrivaled lightweight - A remarkably low transport weight from 7.3 kg for the Fixed Front and 7.5 kg for the Swing Away frame! The QS5 X as the lightest aluminum folding box frame on the market is not only comfortable to lift, transport but also effortless to self-propel to increase the rider’s energy efficiency. The material and construction make all the difference – strong doesn‘t always have to mean heavy. The frame of the QS5 X is made of high-grade 7000 series aluminum, designed for an exceptionally high strength-to-weight ratio and is used in many aerospace applications where strength, durability and weight are essential factors.

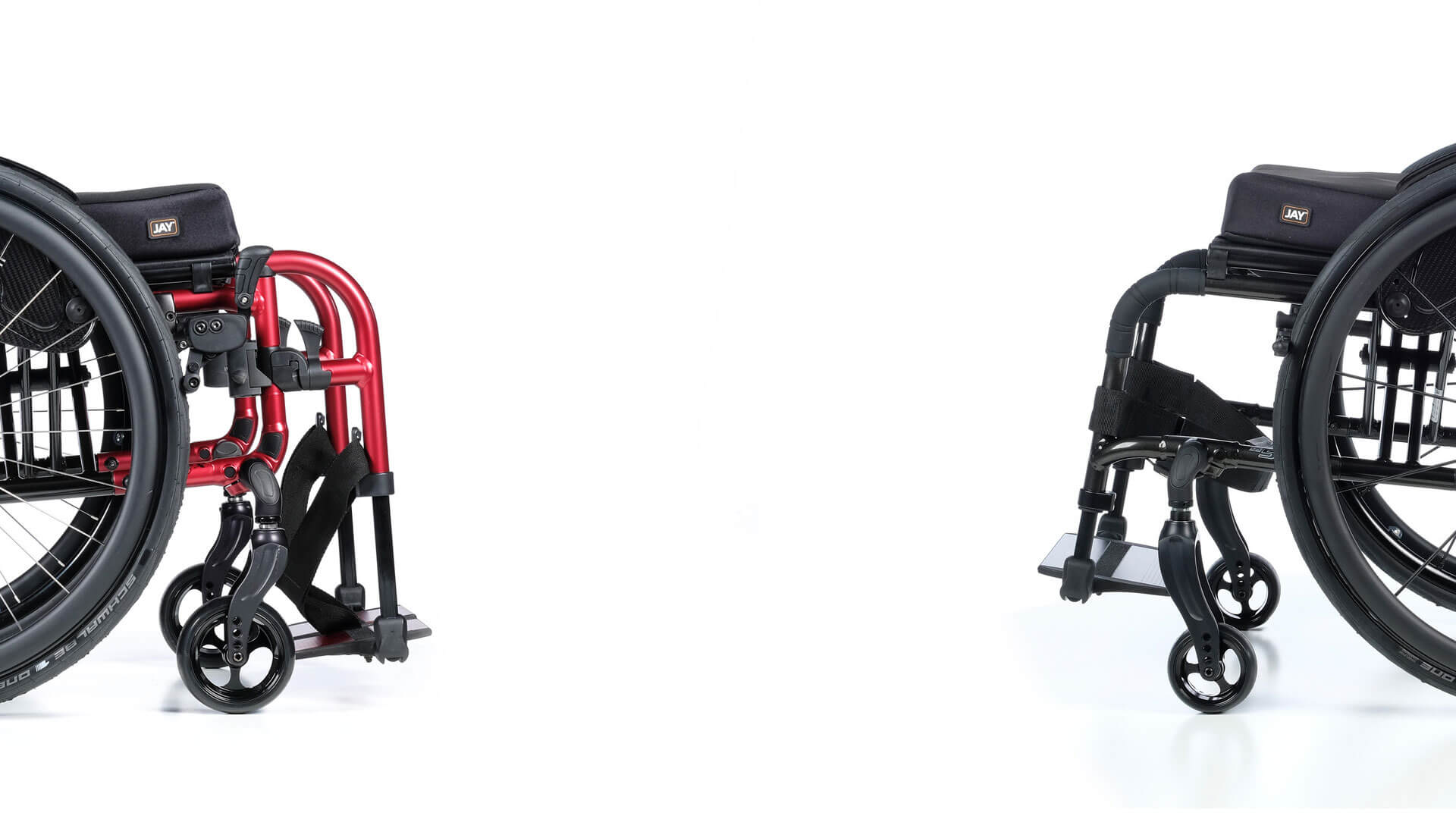

Fixed-Front or Swing-Away?

Frame Versions

Fixed-Front or Swing-Away?

The QS5 X is available with two different frame versions - Fixed-Front and Swing-Away.

The Fixed-Front version has footrests that are permanently attached to the chair frame, providing additional stability and support. This feature can be particularly beneficial for people with higher positioning demands, as it helps to keep the legs in an ideal position.

The Swing-Away version has footrests that can be swung away to the side, which enables a safe and comfortable transfer into the chair, especially from a standing position. By removing the footrest, it´s possible to position the wheelchair closer to the object you want to transfer on, furthermore the pack-size of the wheelchair will be minimised.

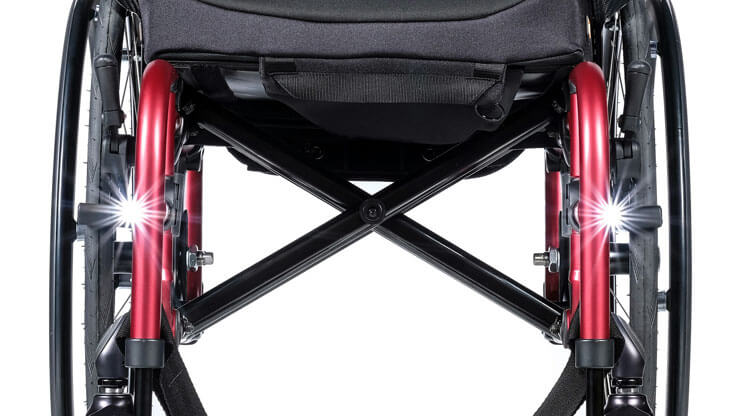

Bright removable LED lights.

Smart Options

Bright removable LED lights.

In many situations, it’s good to have your own light - if you need to go to the bathroom at night and don’t want to illuminate the whole apartment, or if you’re on your way home in the evening and need to see obstacles that could throw you off balance. The QS5 X’s LED lights are a great solution! Discreetly integrated into the overall design of your QS5 X, and removable for charging, the LED lights provide a great feature to light your way when you need them!

Receive a Brochure and Price Guide by Email

Read more about our data processing guidelines on our privacy policy.

How do we use your information for a brochure request?

Sunrise Medical will use your details to send you an email with the brochure and price guide that you've requested. We'll never disclose or share your personal data with anyone else. Your information will be stored in the UK and will be kept for 3 days.

Width:SW + 180/240/270 mm at 0, 2, 4° camber and 25" wheels
Length:1113 mm
Height:1020 mm
Seat Width:340 - 520 mm (in 20 mm steps)
Seat Depth:340 - 500 mm
Front seat height:360 - 540 mm
Rear seat height:350 - 520 mm
Backrest Height:250 - 500 mm
Frame Angle:Swing Away: 70/80/90°, Fixed-Front: 75/85°
Maximum Safe Slope:
Rear Wheel Size:22", 24", 25", 26"
Front Wheel Size:4", 5", 6", 7"
Frame Type:Folding
Frame Version:Swing Away / Fixed Front
Material:7000 Series Aluminium
Maximum User Weight:140 kg
Total Weight:Swing Away: From 10.1 kg, Fixed Front: From 9.9 kg
Dismantled Weight:Swing Away: From 7.5 kg (without rear wheels), Fixed Front: From 7.3 kg (without rear wheels)
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
