Empulse F55Pull Device

Extra power for your wheelchair

Extra power for your wheelchair

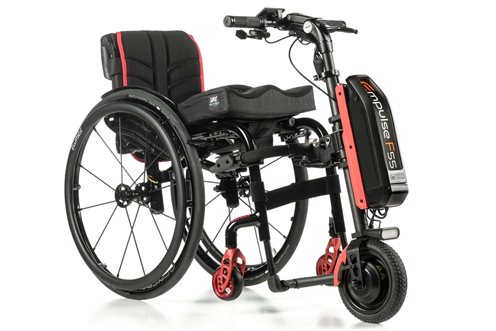

The Empulse F55 wheelchair pull device lets you explore worlds that used to be out of reach. The 8.5'' wheel version is the ideal choice if you're more at home in the urban jungle of city life. Small, versatile and very manoeuvrable. Intended for in- and outdoor usage.

Request Brochure

Enjoy the ride

The ideal solution if you are looking for an environmental-friendly solution that is easy to handle and helps you explore worlds that used to be out of reach.

  • You're just a few steps away from maximum driving pleasure. The Empulse F55 easily fits on almost all common manual wheelchairs. Just dock within seconds and the F55 becomes a powerful companion in your daily life. For further details please refer to our compatibility guide.

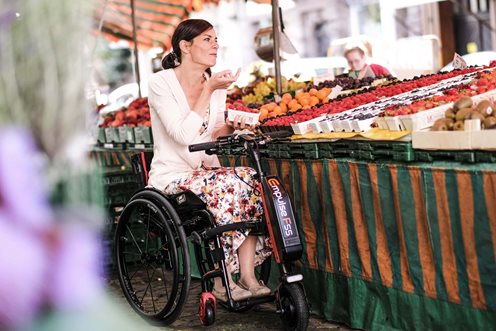

  • Life is dynamic and vibrant, so keep up with it. Enjoy mobility and flexibility in your daily stroll through the city. Narrow streets or small areas on the market? No big deal thanks to a super small turning circle. Meet friends or enjoy a comfprtable shopping stroll.

  • Smartly designed to provide you that extra bit of independence and carelessness, the Empulse F55 allows you to save your strength and extend your personal range.

  • Whether it's a walk through the park or a ride with the train - the Empulse F55 wheelchair pull device gets you there smoothly. Easily adjust the handlebar for an optimised positioning, so your shoulder joints are relieved and you can drive longer with less effort.

Enjoy the ride

Mobility has never been so easy

The Empulse F55 is compatible with most fixed-front wheelchairs and offers many benefits in your daily life.

  • The SA version of the Empulse F55 has a longer sub-frame to perfectly adapt to swing-away frames. The swan-necked steering tube improves the user's seating-position.

  • Choose between the 8.5'' version (shown here) or the 14'' version. The fully adjustable position of the Empulse F55 lets you adjust weight-balance and optimize traction. Two independent brake systems ensure increased safety. Smaller pack-size, easy to transport, very manoeuvrable and it turns „on a dime“.

  • The Empulse F55 comes with a 8.1 Ah capacity Li-Ion battery for up to 25km of range. It features an intelligent battery management system for improved charging cycles and lifetime.

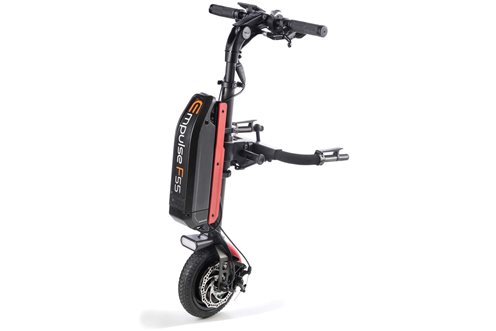

  • The Empulse F55 is ultra compact and easy to dock so that you can upgrade your wheelchair with that extra power whenever it is needed. Thanks to the flip up sub frame, the F55’s pack size can be minimised within seconds.

  • Full control with the easy-to-read display. It shows all the information you need: Speed mode, trip distance, total distance, battery condition and power consumption. You can also adjust the position of your handlebar on-the-fly.

Mobility has never been so easy
Meet Mareen

Testimonial

Meet Mareen

I was diagnosed with multiple sclerosis (MS) 13 years ago. My legs no longer "obey" as I would like them to.

With the new Empulse F55, there is a pull device now that is fully motorised, so I can safely leave the car in the garage! Just dock and drive off. I like that very much, because my mobility radius has increased even further now.

Receive a Brochure and Price Guide by Email

Read more about our data processing guidelines on our privacy policy.

How do we use your information for a brochure request?

Sunrise Medical will use your details to send you an email with the brochure and price guide that you've requested. We'll never disclose or share your personal data with anyone else. Your information will be stored in the UK and will be kept for 3 days.

They're great together.

Quickie Easy 300 folding wheelchair

QUICKIE Easy 300

The flexible folding wheelchair

Quickie Easy 200 Folding Wheelchair

QUICKIE Easy 200

The Benchmark in active mobility...

Quickie Xenon² Hybrid Folding Wheelchair

QUICKIE Xenon² Hybrid

With a reinforced frame there is no compromise in rigidity

QUICKIE Xenon 2 SA Folding Wheelchair

QUICKIE Xenon² SA

The lightest folding aluminium wheelchair in the market, now with swing-away legrests.

QUICKIE Argon 2 Active Wheelchair

QUICKIE Argon²

The fully adjustable rigid wheelchair.

QUICKIE Life R Active Wheelchair

QUICKIE Life R

Lightweight, with a rigid and durable frame and a modern look of an active wheelchair

QUICKIE Xenon² Lightweight Wheelchair

QUICKIE Xenon²

The lightest aluminium folding wheelchair in the market.

QUICKIE Life Folding Wheelchair

QUICKIE Life

Light on weight. Heavy on strength.

QUICKIE Neon² Folding Wheelchair

QUICKIE Neon²

Lifestyle meets performance

QUICKIE Nitrum Active Wheelchair

QUICKIE Nitrum

Precision-engineered to turn your energy into motion, so you can go further, faster and for longer.

Dimensions
Width:260 – 480 mm (Wheelchair front frame width)
Castor Wheel:8.5''
Drive Wheel:8.5''
Colours:4: Black, red, blue, orange
Performance/Weights
Max. Range:25 km
Speed:6 kph; optional 10 kph or 15 kph or 20 kph
Batteries:Lithium-ion, 36V, 8.1 Ah
Max Kerb Climb:up to 11% (6°)
Total Weight:From 13 kg (with battery)
Maximum User Weight:110 kg

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Frequently Asked Questions

Thanks to the flip up sub frame, the F55's pack size can be minimised within seconds: flip the frame, insert the steering tube and you will get a handy package that can be stowed away easily. If necessary, the sub frame and also the battery can even be fully detached.

Store the battery in a dry, cool place at around 10 to 15 degrees. Ideally, the battery should be kept at a state of charge of roughly 75%. If it is stored for too long with little charge, the voltage inside drops so drastically that a deep discharge can occur, which permanently damages the battery.

Max. speed forward is 6 kph. Optional available is 10 kph or 15 kph.
Using the F55 with max. speed-settings higher than 6 kph is only permitted on public roads in certain countries and otherwise may only be used on private property.
In the absence of approval (attached to the Order Form and must be signed before order), in accordance with the road traffic laws, the F55 with speed >6 kph may not be driven on public roads, bicycle-lanes and pavements. You need to inform yourself about the country specific legislation regarding usage and your legal obligation to insure the F55 speed settings higher than 6 kph (10/15 kph). When you're travelling with your F55, always check the specific legislation in the respective country.

The F55 easily fits most manual folding and rigid wheelchairs. Please refer to the Compatibility Guide on the Sunrise Medical website. The Compatibility Guide indicates all chairs for which a Combination agreement exist. The list is an indication of wheelchair models the F55 can be mounted on. Please see also the section "Docking Information" in the Compatibility Guide. Here you  find even more information about what requirements have to be met to attach the F55 to your wheelchair. Frame shape, CoG, wheel-size and seat-depth are of influence. Additionally, a straight section of the frame tube of at least 35 mm is also necessary for the attachment of the clamps. Therefore it is essential to try and test it to be 100% sure! Or ask your supplier for advice.

The F55 is a small, versatile, very maneuverable and transportable pulling device that is intended for in- and outdoor usage. The 14" shows better offroad-capatibility, whilst the 8.5" version convinces with ist very small turning circle in- and outdoor.
