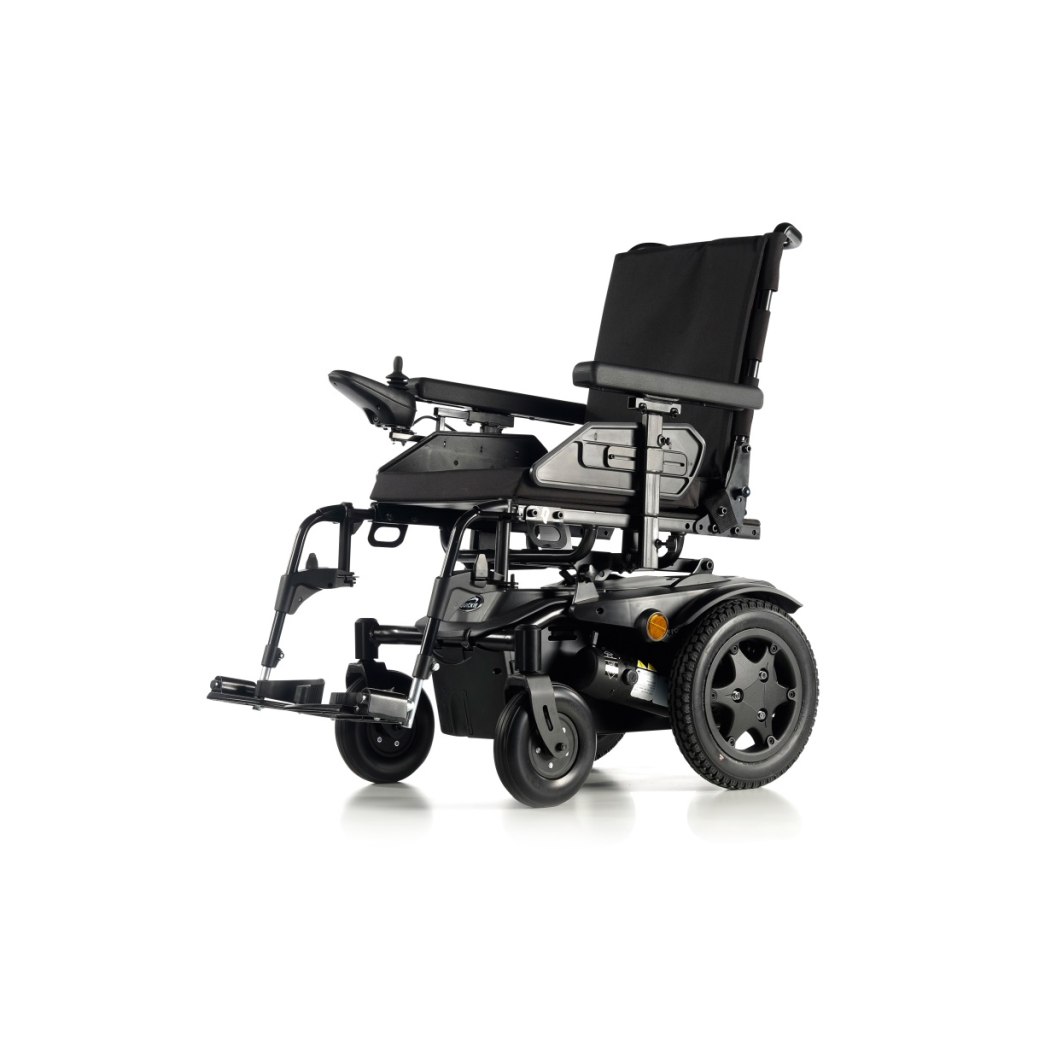

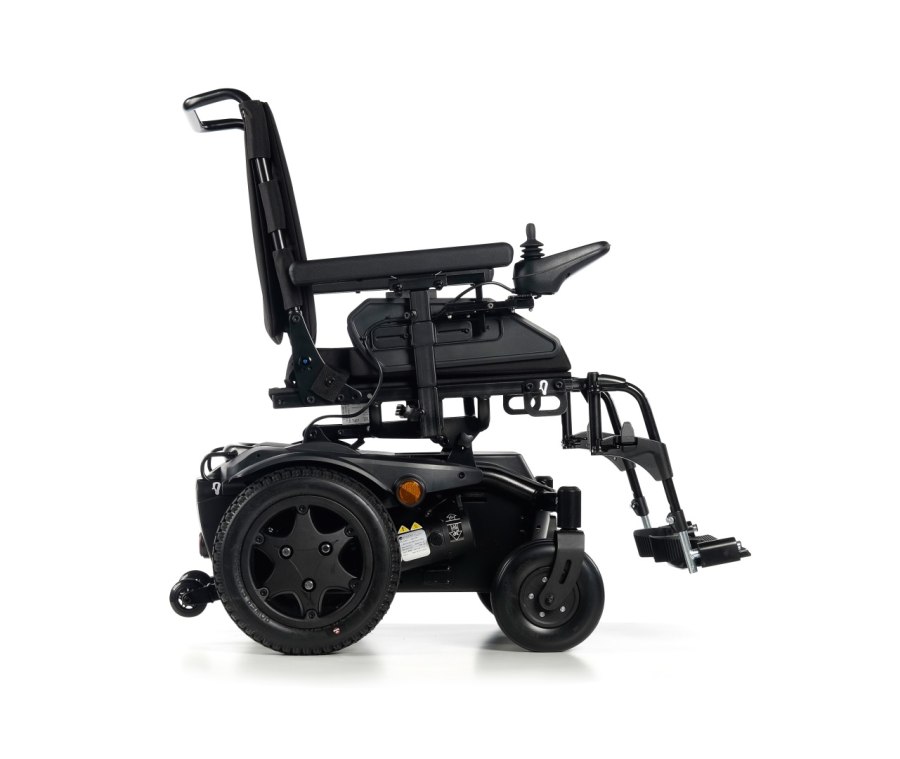

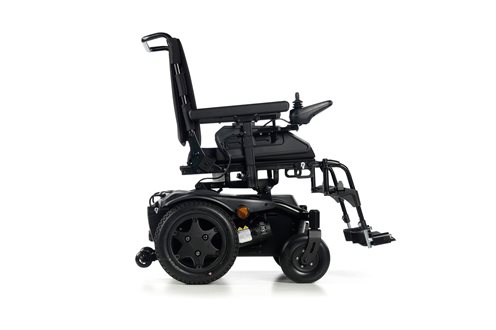

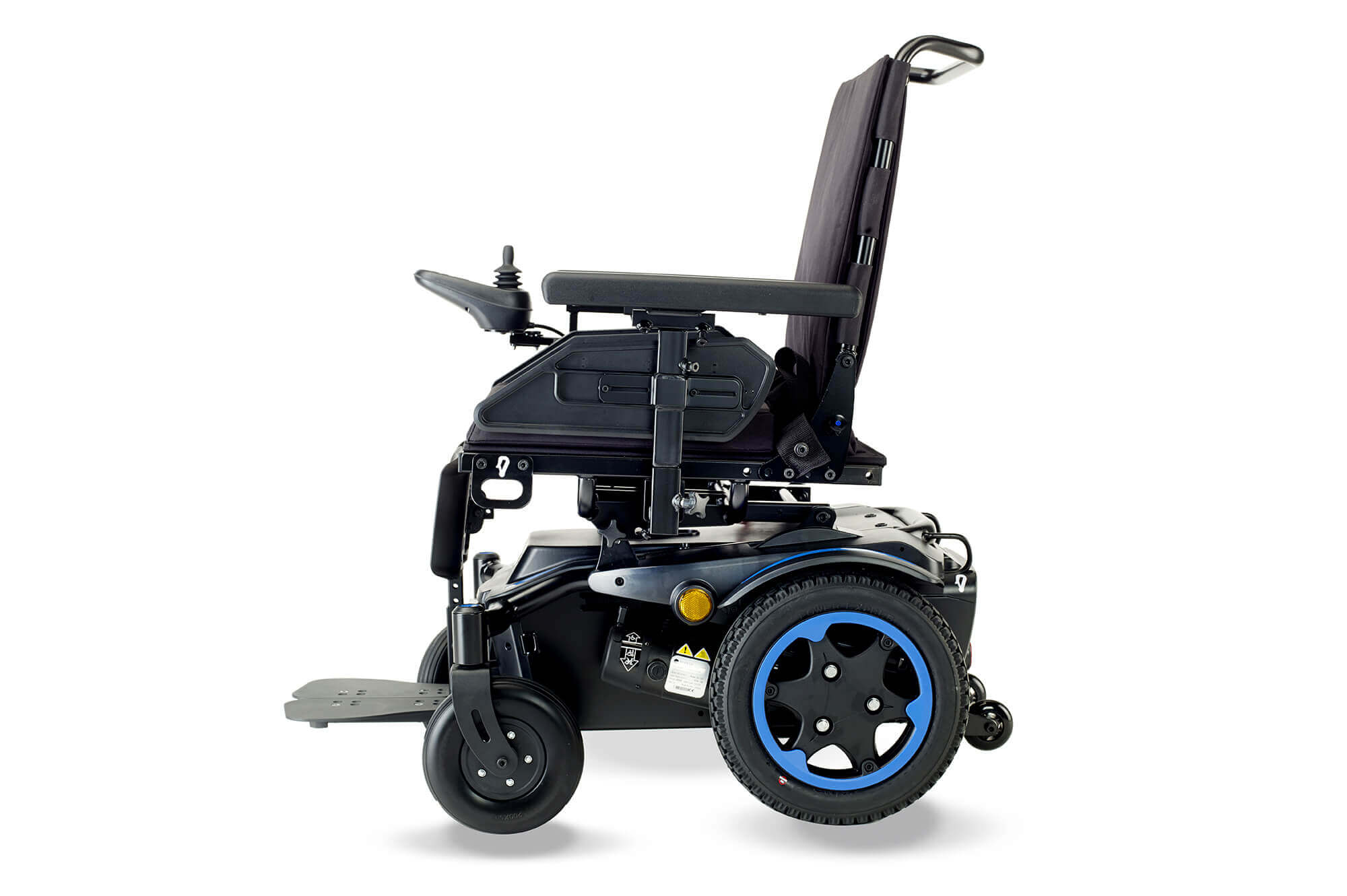

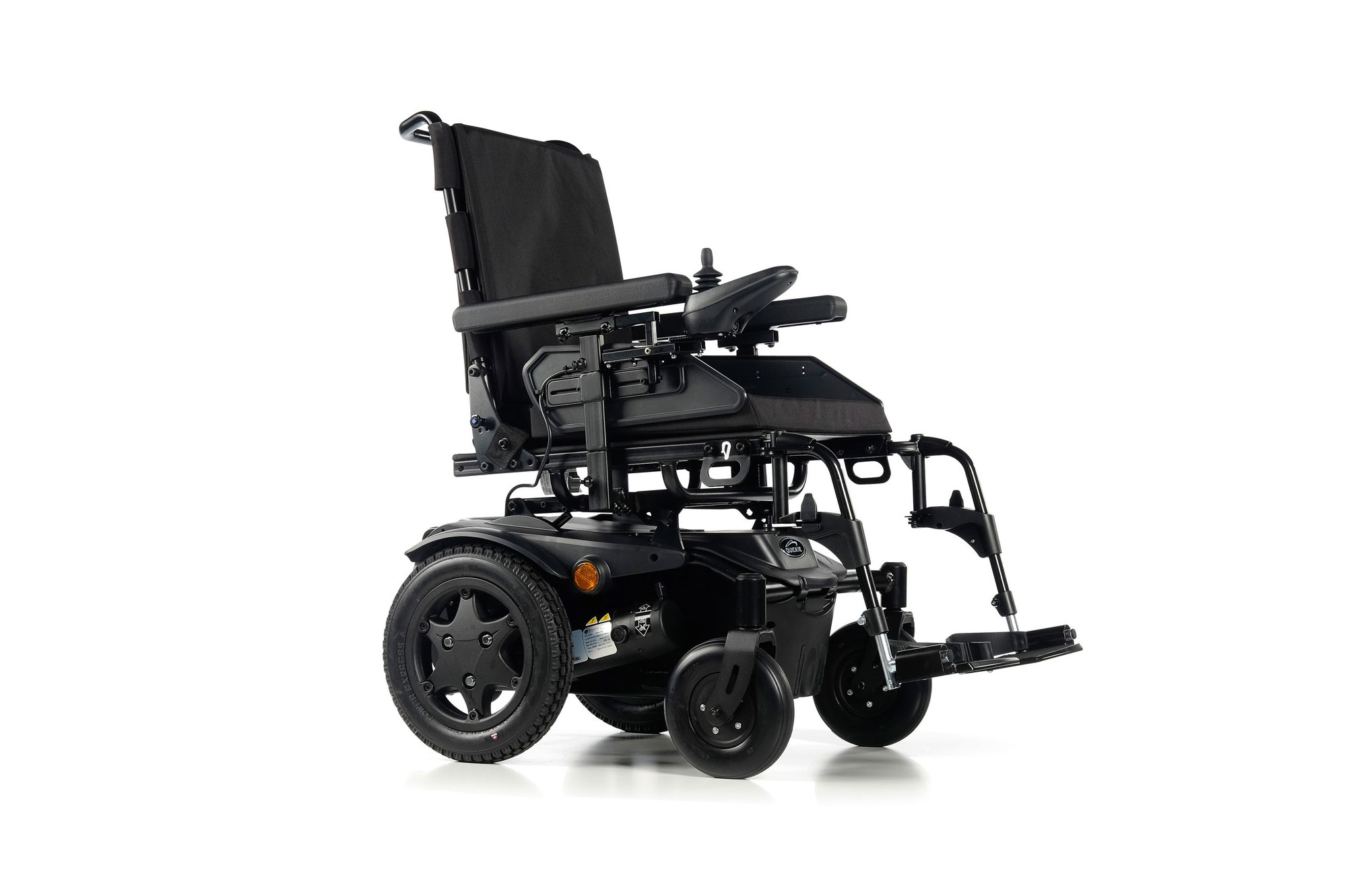

Q100 R Rear-Wheel Powered Wheelchair

The QUICKIE Q100 R is the NEW ultra-compact indoor / outdoor entry level powerchair.

The ultra-compact indoor / outdoor entry level powerchair.

Whether its around the home, the local cafe or shopping mall, the Q100® R is in-touch with its environment inside and out. With an ultra-slim base and tiny turning circle, even the smallest place will feel big.

Precision-measured in length, the Q100 R (1010 mm) will conveniently fit in-and-out of floor lifts and other short spaces without the traditional sacrifice of stability. Effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manoeuvres.

Request Brochure Order Form

Crash Tested

Smart base technology

With the Q100 R, our vision was to create a TRUE indoor/outdoor powerchair. One with super-tight indoor manouverability and ZERO compromise on outdoor stability and performance. But how do you design such a finely-balanced power wheelchair?

Lean towards a large drive-base and you'll encounter difficulty manouevering in tight environments. Go too small and it'll be too tippy with a loss of traction. Finding the perfect combination requires testing 100's of configurations. So that's exactly what we did - with SMART BASE TECHNOLOGY.

The result is the QUICKIE Q100 R. A legitimately compact entry-level powered wheelchair that delivers the very-best traction, stability and even the ability to climb kerbs of up to 100 mm.

Q100 R Key Benefits

SMARTLY DESIGNED to challenge indoor/outdoor powerchair standards, the QUICKIE Q100 R is ultra-compact for indoor agility, with stability and performance that's just at home on the city streets. Smart design, smart looks at a smart price - it's not just an entry-level powerchair, it‘s your every-day powerchair.

  • The innovative testing method used to understand how geometery changes to a drive base can affect performance, creating a precision-measured TRUE indoor/outdoor powerchair.

  • Ultra-slim base width starting at 540 mm and a turning circle from 1600 mm. Simple, intuitive controls for a drive that's made for the twists and turns of everyday life.

  • Carefully calculated dimensions to deliver the very-best traction and stability outdoors. Punchy 55 Ah batteries for 31 km of adventure.

  • DAHL compatible to drive your vehicle from and crash-tested for use as a seat whilst in transport. Weighs in at a ridiculously-light 95 kg, making it a breeze to hoist.

  • A streamlined, minimalistic design contrasted with sleek, black bodywork. Make it personal with a selection of vibrant colour inlays.

Q100 R Key Benefits

Superior indoor manouverability

Boasting the smallest footprint of 540 mm width and 1010 mm length, the Q100 R‘s turning circle is a tiny 1600 mm, so navigating even the tightest of spaces is a breeze. Going out? The Q100 R provides a stable ride on urban roads and paths, ideal for those day trips out. Unbelievably light at 95 kg, the Q100 R is easy to hoist in and out of your car.

Fed up of clipping the side of your powerchair or scratching the paint work when squeezing through a tight doorway? The Q100 R‘s ULTRA-SLIM BASE can go where other indoor/outdoor powerchairs won‘t fit - so even negotiating narrow paths or packed tables at your favourite cafe will be no trouble with the unbelievably narrow 540 mm width.

Turn heads and your chair everywhere you go. With a turning circle of only 1600 mm, you can effortlessly turn in narrow hallways, kitchens and other restricted spaces without the need for complicated manouvres. Navigating even the tightest of spaces is a breeze.

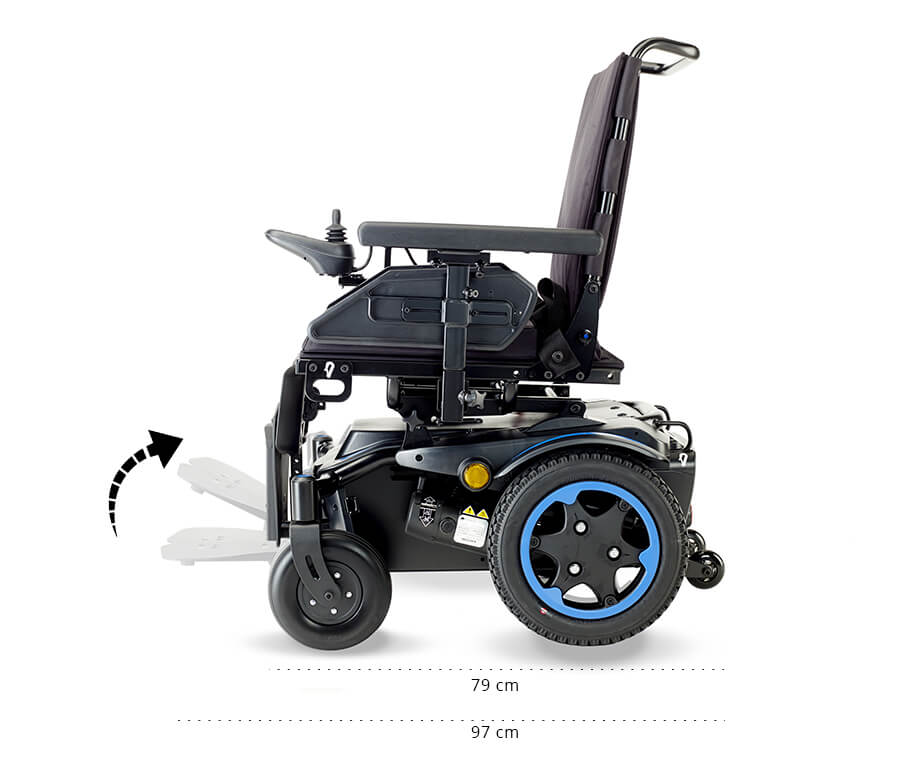

The legrests and controller can also swing outwards, so the Q100 R can get even-closer to objects like tables and chairs for an easier transfer in or out of your powered wheelchair.

Superior indoor manouverability
Sit back and relax

Sit back and relax

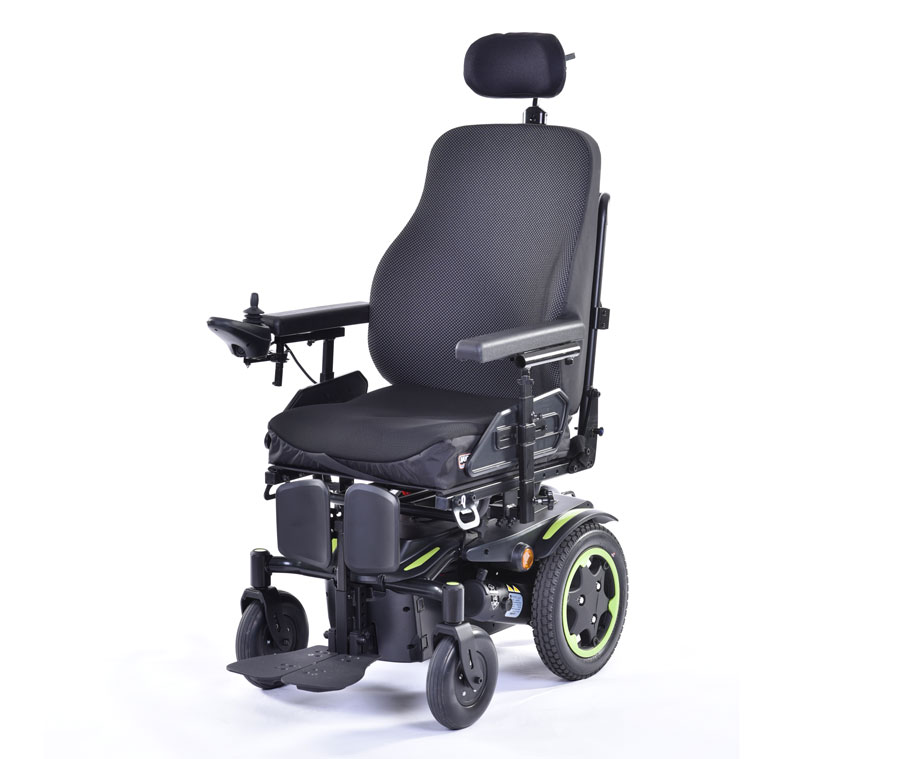

The Q100 R seating has been designed to fit you. With plenty of settings and a 5-strap tension adjustable back to meet postural requirements, take comfort in knowing that if your needs change, so can your seat.

Seat adjustments include:

  • Seath depth from 405-505 mm
  • Optional Legrest width from 380-490 mm
  • Backrest angle from 0, 4, 8 and 12 degrees
  • Seat angle from 0, 3 and 6 degrees
  • Seat width from 430-500 mm
  • Side guard from 0-50 mm
  • Optional seat height from 450 mm
  • Armrest height 230-305 mm

The small powerchair that's big on going out

Popping out? The Q100 R's indoor capabilities are just at home outdoors. Painstakingly researched, its compact dimensions provide highly-deceptive traction and stability over a variety of terrains, hills and even when tackling kerbs.

Powered by punchy 55 Ah batteries, the Q100 R loves a spin around town and longer city trips. With the stamina to go 31 km on a single charge, you‘ll have plenty of time to stop-off for other adventures along the way.

Precision-testing determined that our 1010 mm base-length provides the best stability to prevent tipping and keep you safe - even when travelling up hills of 6 degrees.

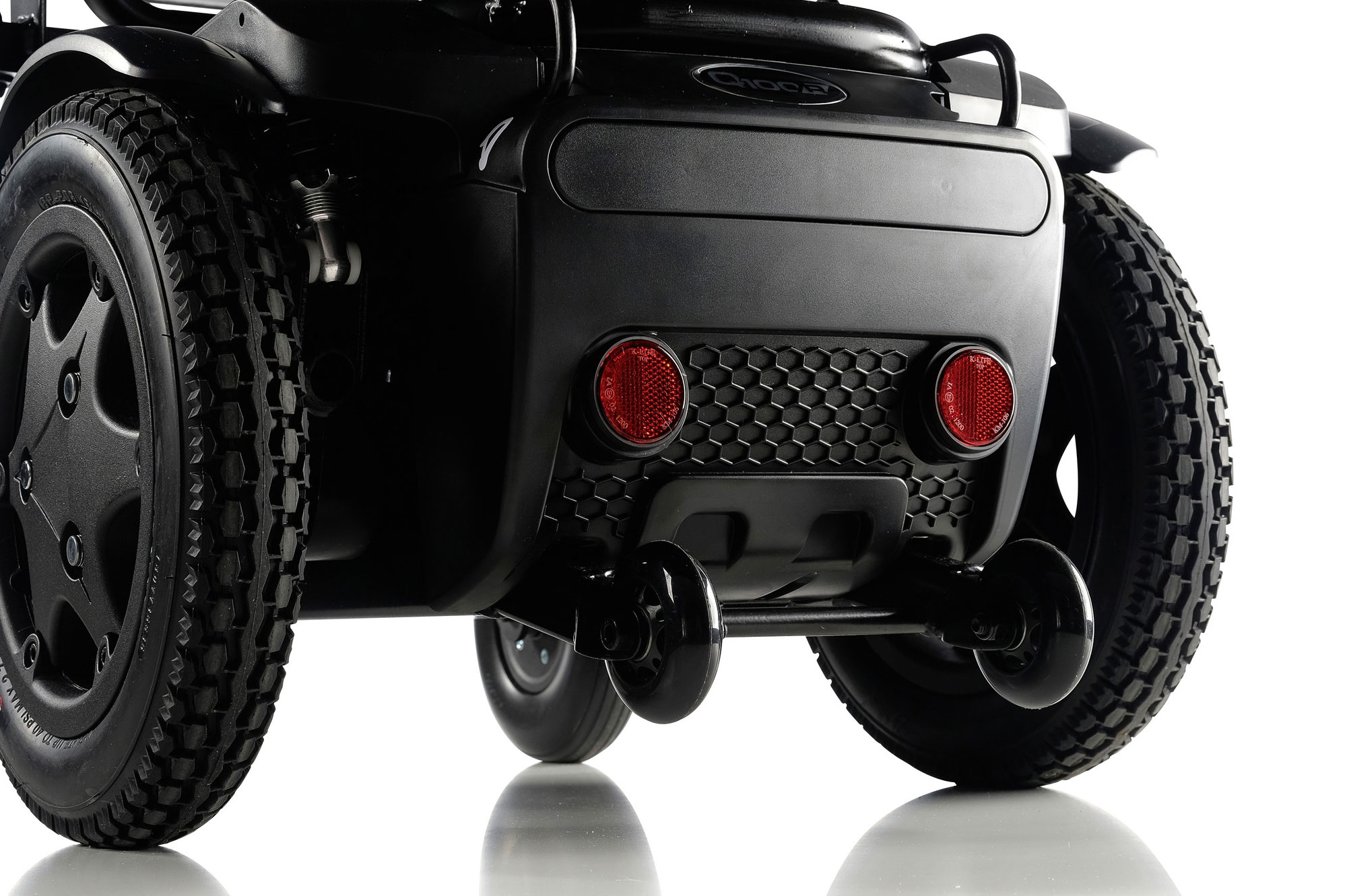

Need a little assistance climbing obstacles? The Q100 R‘s low-impact kerb climber will tackle kerbs of up-to 100 mm at low speed and even from a standing-start (so your seated position will be maintained whilst transitioning up the kerb).

The kerb climber fits snuggly behind your footrests, eliminating the problem of it dominating your footspace like traditional kerb-climbers - especially when tranferring in-and-out your powerchair.

Primed for public transport, the intuitive Q100 R is so compact and manouerable, getting on-and-off trams, buses and trains is a breeze. Prefer to travel by car? The Q100 R can be compactly stored in the boot or used as a seat whilst travelling.

The small powerchair that's big on going out
Dimensions
Width:540 mm (21'')
Length:1010 mm (39.5'')
Seat Width:430 - 500 mm (15'' - 19'')
Seat Height:450 mm (17.5'')
Seat Depth:405 - 505 mm (16'' - 20'')
Seat Tilt:0° - 6°
Backrest Height:500 mm (20'')
Turning Diameter:1600 mm (63'')
Performance/Weights
Max. Range:31 km
Speed:6 kph
Batteries:55 Ah
Maximum Safe Slope:
Max Kerb Climb:70 mm - 100 mm (with Kerb Climber)
Electronics:VR2
Min. Wheelchair Weight:from 95 kg (incl. 55 Ah batteries)
Maximum User Weight:125 kg
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Frequently Asked Questions

Yes, it's advisable to recharge the batteries every night - regardless of their use during the day. It's especially important to fully-charge your power wheelchair before first-use. If you don't recharge the batteries regularly, it will reduce their ability to hold power.

Our Built-4-Me customisations team can help to provide customisations that go above and beyond the standard options that are generally available to order. They'll make every effort to provide you with a safe, reliable solution that matches your needs.

Your user instruction manual will provide information on how to adjust the driving profile. However, any reprogramming of the control unit must be carried out by an authorised Sunrise Medical dealership. Improper programming of the control unit can jeopardise safety whilst driving.

The charge indicator that's built into the charger should notify you. However you should always consult your user manual for the exact instructions for your power wheelchair model.

Battery life depends on many factors such as user weight, temperature, use of electronic options, terrain and battery charge status. Battery life that's indicated in your user manual and other documentation is a theoretical maximum values (as according to ISO 7176 standards) and will always be affected by the situation the power wheelchair is used in.
