GrandSlam CXSports Wheelchair

The sports wheelchair for tennis enthusiasts.

Contact Us
Contact Us

Truly merge your mind, body and wheelchair with this superior CX seating option

What could possibly make the GrandSlam X better? A seat that blends your body and chair to become one entity; this fusion allows for a super responsive connection that still remains unparalleled. Bonded together, the wheelchair and player have maximised efficiency and optimised performance; control of the chair becomes pure instinct over direct propulsion. You’ll fail to find a snugger fit than your GrandSlam CX.

Contact

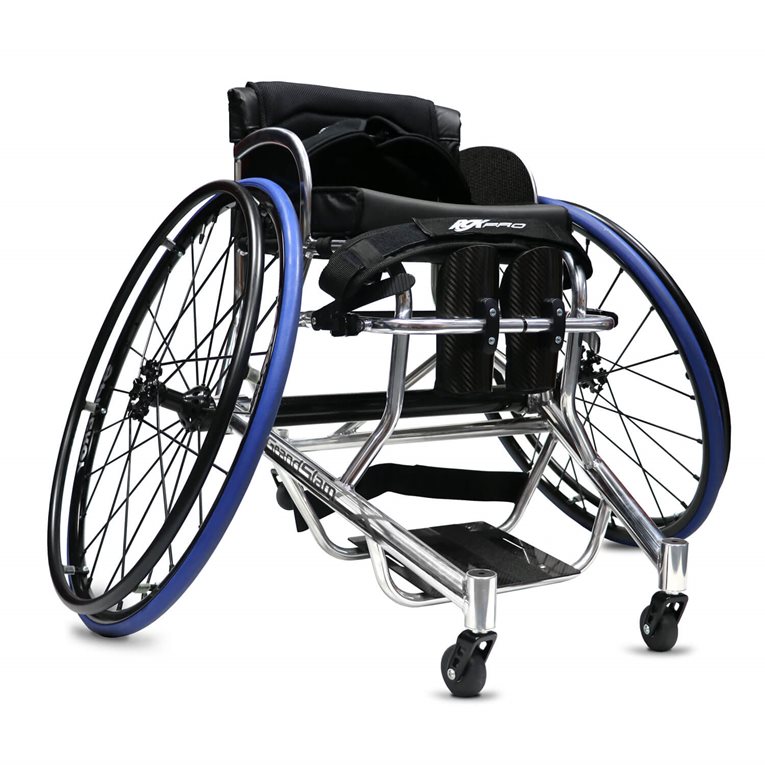

RGK GrandSlam CX Tennis Wheelchair

Performance

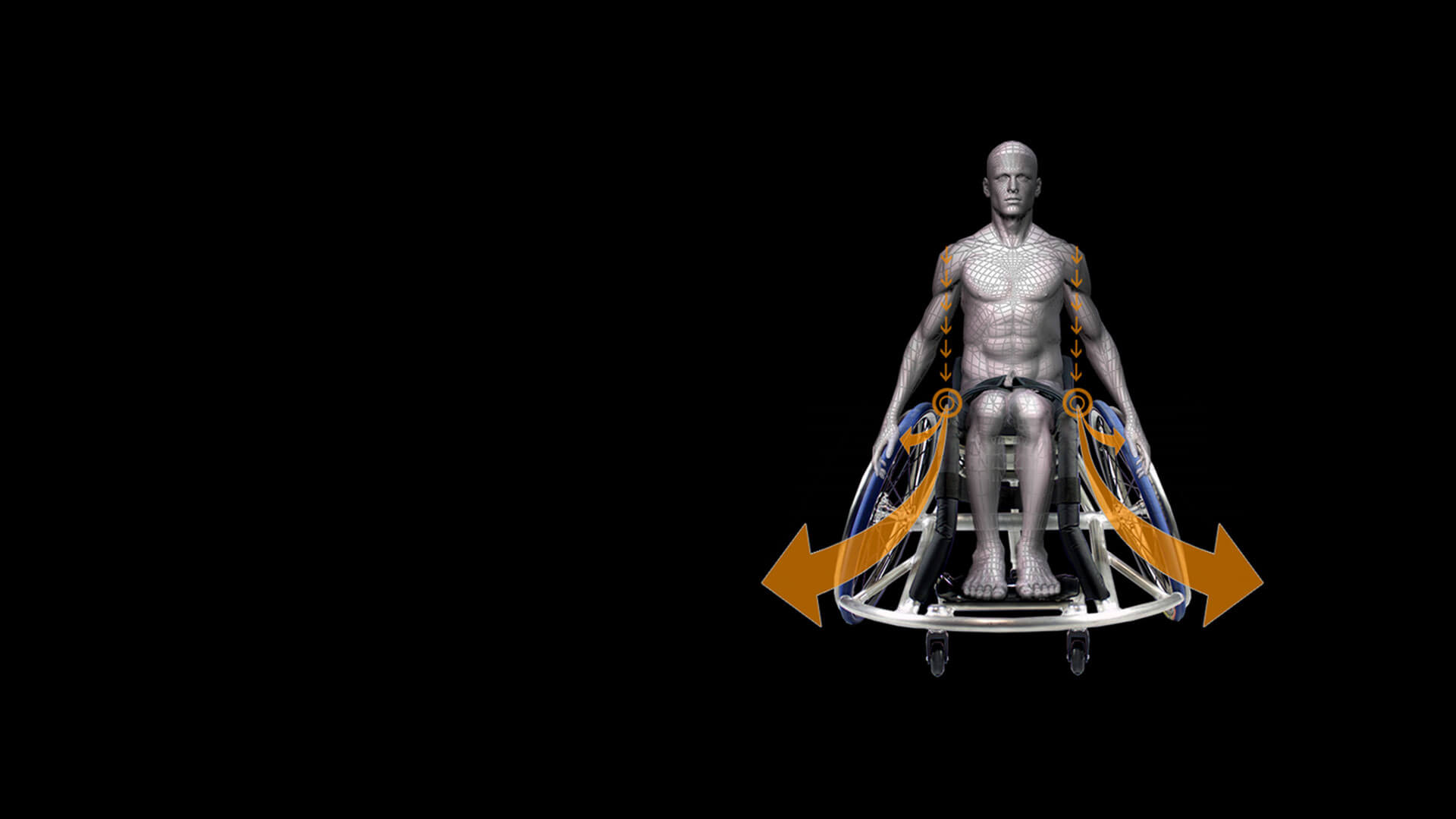

Unrivalled performance

Only the best materials are used in your GrandSlam CX. Aluminium is famous for its strength, durability and is synonymous with lightness. Carbon fibre is notoriously light, but also has a high tensile strength, too. The utmost best performance of your chair is ensured by only using elements produced by market leaders, alongside a staggering 19 quality checks throughout the build, from measure to handover.

  • Optimised biomechanics for maximum power and efficiency.
  • Carbon fibre seating technology for improved agility and responsiveness.
  • Seating position to suit your game.
  • Perfect toe in toe out for minimum drag.
  • Bones Reds high precision castor bearings as standard to maximise energy.
  • Low friction castor wheel with less dirt pick up.
  • Kenda Kaliente tyres as standard for ultimate court performance.
Unrivalled performance

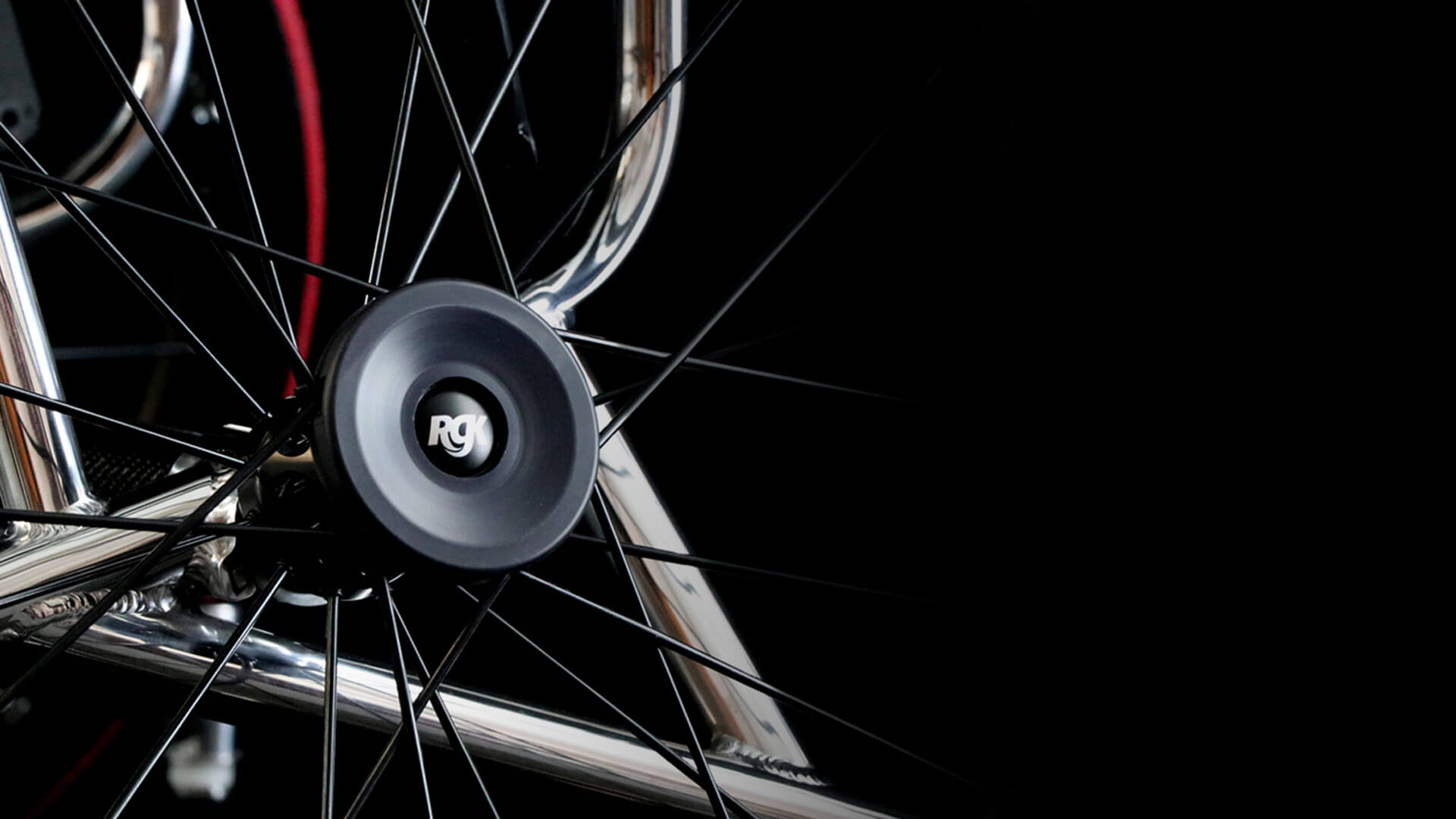

Tri-Frame

Force is distributed over a bigger surface area of the chairs frame.

The TRI-FRAME is a design that better distributes the energy created during play across more sections of the chair, the benefit of which is peace of mind that your chair can withstand anything. Instead of relying solely on the axle, the force is now split across the downtube, the strongest part of the frame.

  • Aerospace grade aluminium 7020 frame, A10 heat treatment as standard.
  • Triangular frame chassis design (TRI-FRAME) that takes the main stress off of the axle with the strongest shape possible.
  • Heavy duty frame design available.
  • Reinforced "impact areas" to prevent game and travel. damage, such as backrest and anti-tip.
  • Tri-Frame Increases the strength of the chair by disperspersing force evenly.
  • Standard frame puts pressure on the chairs frame by distributing force unevenly.
Force is distributed over a bigger surface area of the chairs frame.

Seating

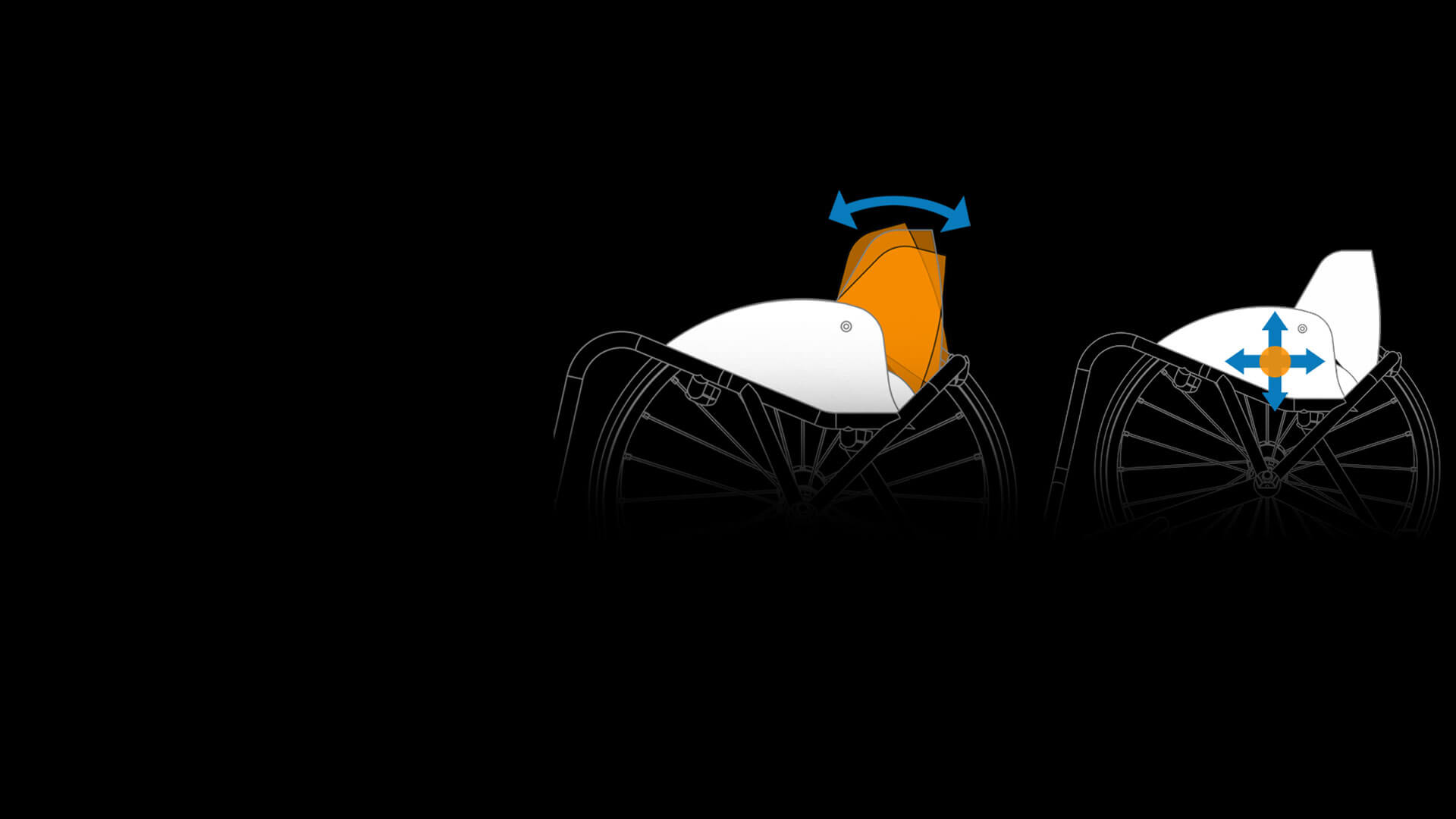

Ergonomics

  • Unique carbon fibre backrest and seat shaped to your requirements.
  • Ergonomic seat for pelvic positioning and optimum balance.
  • Taper seat design for super responsiveness.
  • Seat mounts via clamp to frame, allowing for adjustment and easy removal for transportation.
  • Seat base is easily adjustable 10mm in all directions.
  • Backrest on an adjustable pivot +/- 5-10 degrees.
Ergonomics

Safety

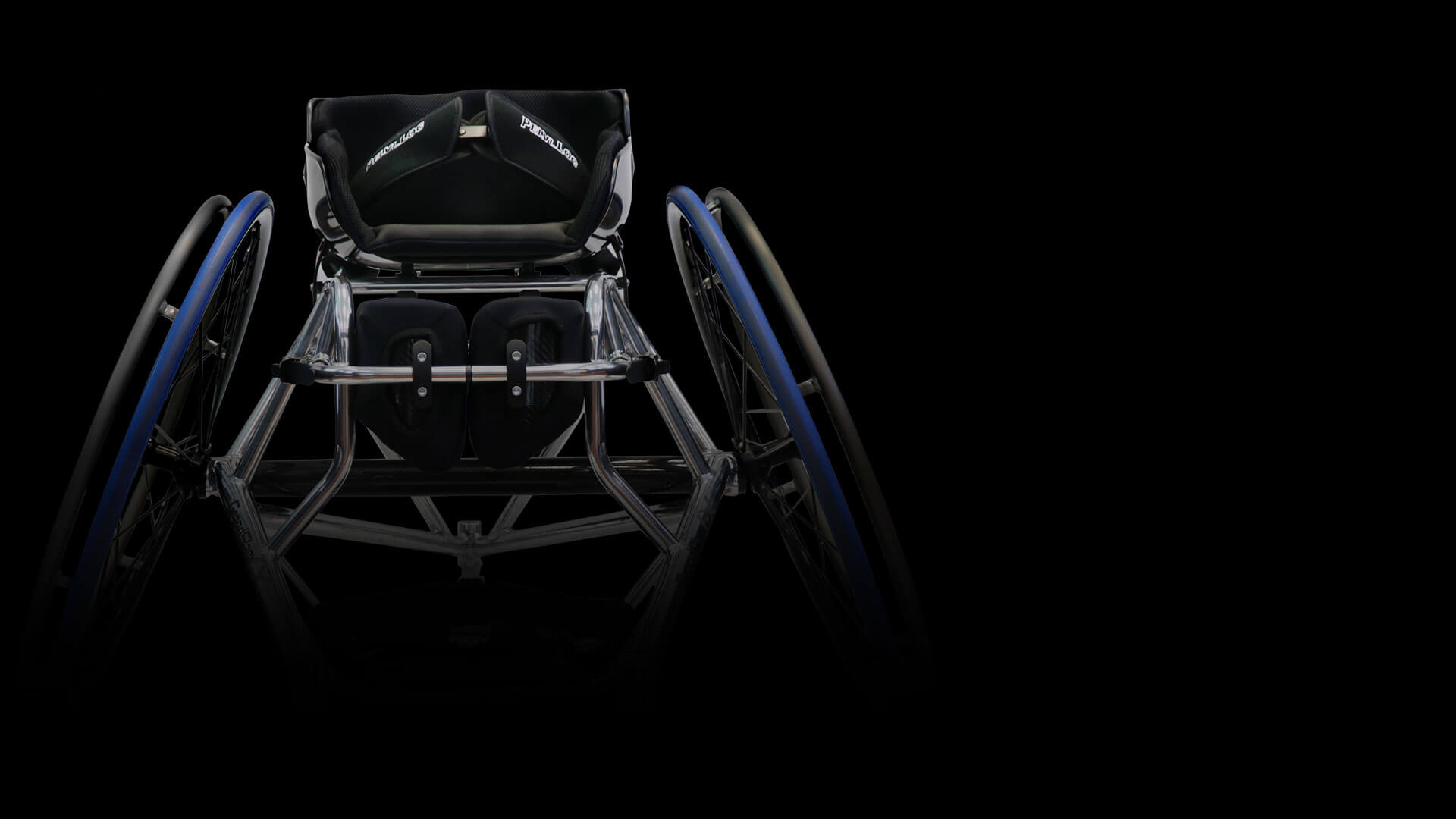

Strapping

  • Range of Ratchet and Velcro strapping to connect you securely to the frame.
  • Pelvic-loc strapping.
  • Calf strap and toe strap supplied as standard.
  • Waist strap available for additional support.
  • Adjustable tension straps for better support and positioning.
Strapping

Materials

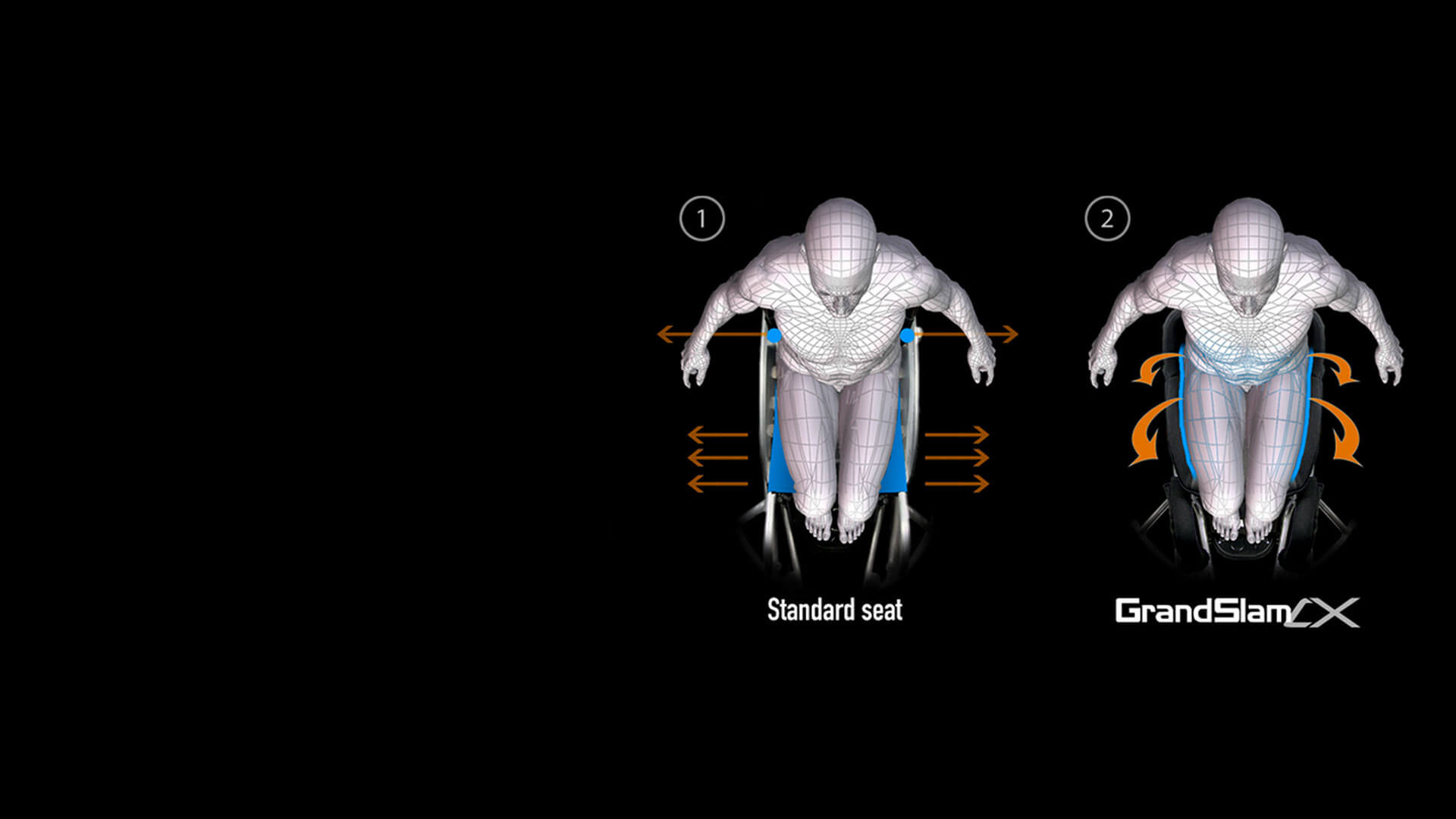

Carbon Fibre Technology

  • Curved design shaped around the contours of your body ensures a maximum connection.
  • Evening out energy distribution makes the chair more comfortable, and improves responsiveness and performance.
  • A better connection to your seat allows any upper body movement to transfer to the chair.
Carbon Fibre Technology

8X Stronger than aluminium

Carbon fibre axle

  • Huge weight saving switching material from aluminium to carbon fibre.
  • Enhance the stiffness and rigidity of your chair with carbon fibre (8 times stronger than aluminium).
  • Axle is clamped to the frame, not welded in position. This provides post-build fine tuning of the toe in/toe out – get your chair rolling absolutely perfectly.
  • Carbon enhances rigidity within the camber bar and chairs frame.
  • Aluminium flexes when put under immenese pressure.
Carbon fibre axle

Alfie Hewett

“Having the top chair has definitely helped my game."

Alfie Hewett

Style

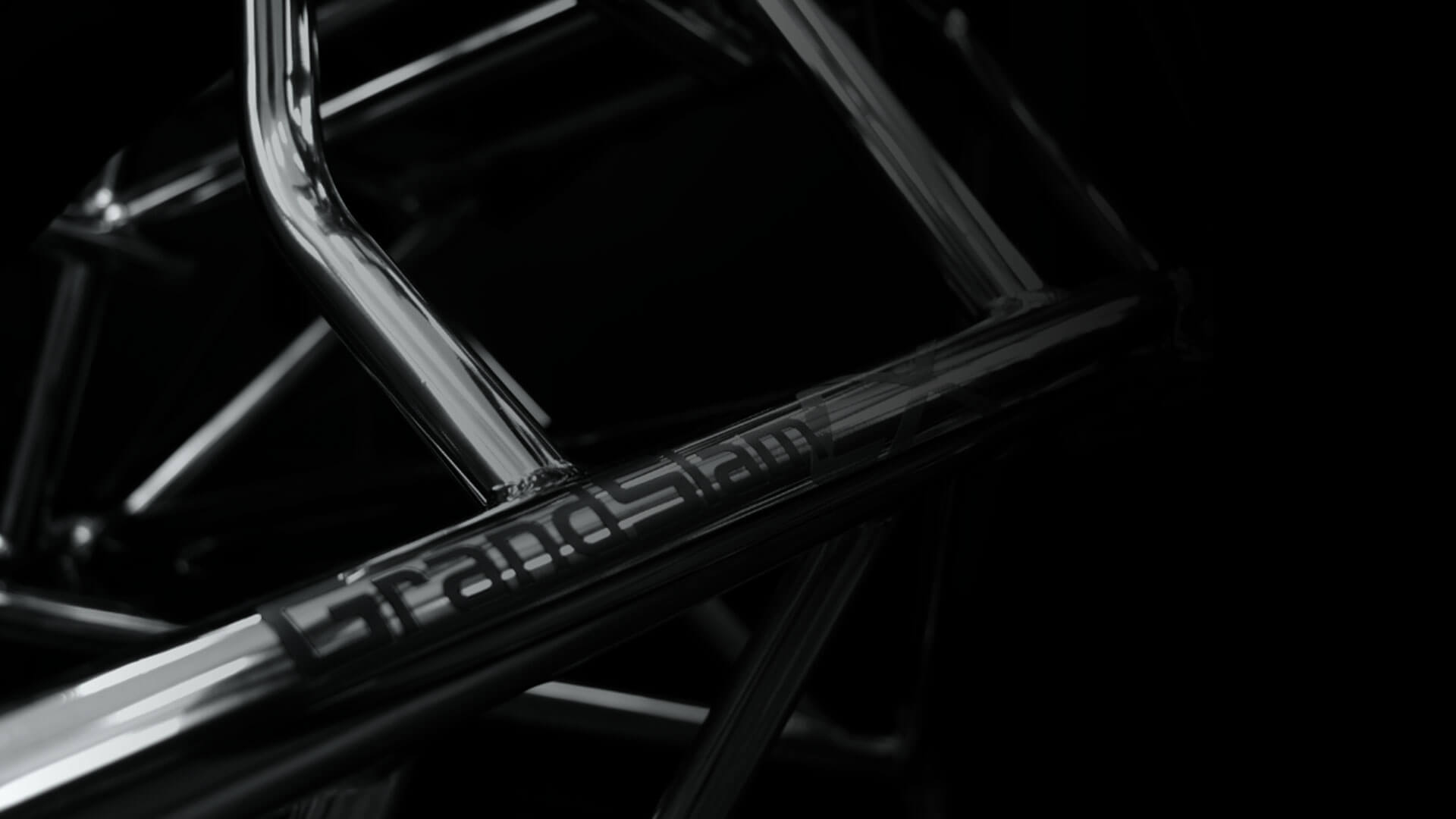

Personalise your GrandSlam CX

  • Choose from 27 polished, brushed, raw or painted aluminium frame colours.
  • Choose an accent colour to suit your style.
Personalise your GrandSlam CX

Specifications

Dimensions
Length:400 - 1000 mm
Seat Depth:300 - 500 mm
Front seat height:360 - 630 mm
Seat Angle:0 - 45°
Backrest Height:100 - 500 mm
Backrest Angle:-10 - 10°
Performance/Weights
Maximum User Weight:125 kg
Dismantled Weight:9.2 kg

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
