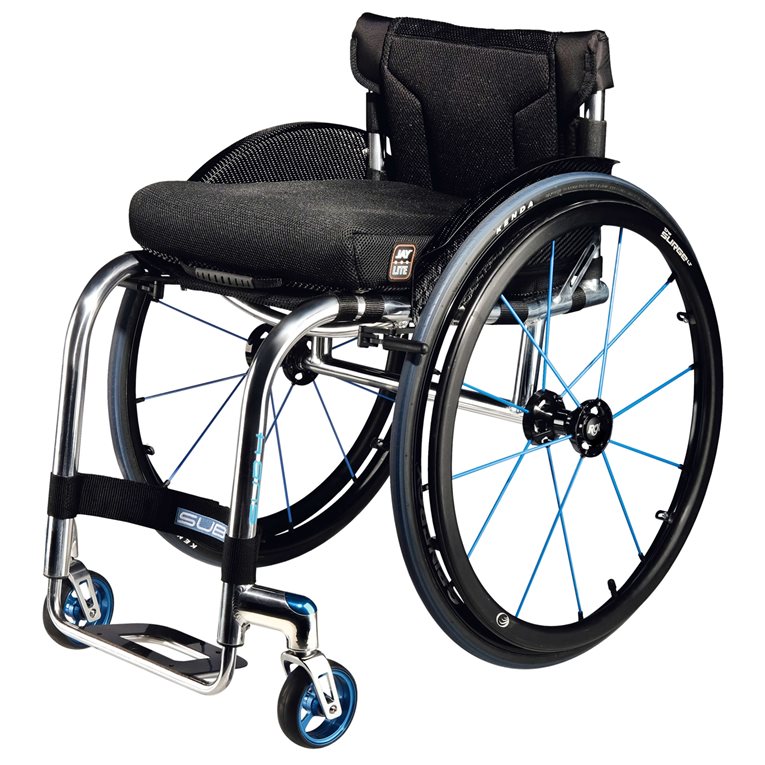

Tiga Sub4Rigid Wheelchair

The ultra-lightweight wheelchair that's less than 4 kg - Guaranteed!

Made from aerospace grade aluminium, the RGK Tiga Sub4 ultra-lightweight rigid wheelchair has been engineered with love, passion and sheer determination to provide the lightest made to measure wheelchair, with no compromises. We believe every gram makes a difference and every component down to washers and screws have been optimised to provide you with a guaranteed* sub 4 kg made to measure rigid wheelchair frame – welcome to the Sub4.

*Excluding wheels and cushion

Where to buy?

RGK Tiga Sub4 Ultra-Lightweight Wheelchair
Sub 4 kg - Guaranteed, no hidden extras...

Sub 4 kg - Guaranteed, no hidden extras...

Your made-to-measure Tiga Sub4 wheelchair frame is guaranteed to be under 4 kg, we’ll even write the exact weight on your certified frame. This includes all standard components such as; compact wheel locks, carbon fibre side guards with fender, castors, carbon fibre footrest cover and upholstery. The rear wheels and cushion are not included as these are easily removed for transportation.

The lighter the wheelchair, the less energy you need to push – it’s that simple.

The lighter the wheelchair, the less energy you need to push – it’s that simple.

We understand that a small weight saving can make getting in and out of the car that little bit easier, so imagine what a massive weight saving can do for you! The Sub4 glides effortlessly due to the lightweight and rigid frame, but don’t think we've compromised on quality.  The Sub4 boasts all the same reliability features as the TIGA, and with the frame being very similar in design and materials, you can be sure the Sub4 isn’t just super light, but it’s super strong too!

Made to measure for an efficient drive.

Made to measure for an efficient drive.

The stiff, robust made-to-measure frame and footrest is hand built and designed to your individual requirements. Every tube has been reviewed and analysed to ensure any excess weight is removed and the reliability that you've come to expect from an RGK wheelchair is maintained. The same has been done for the parts too. The castor wheelchair, sideguards, brakes and fasters have also been reviewed and analysed to remove any excess weight - without compromising function. So the standard ‘on the road’ specification includes all you need to achieve that under 4 kg weight ... with no hidden extras.

Weight Saving Upholstery

Weight Saving Upholstery

The weight saving improvements made to the TIGA Sub4 upholstry include a new  mesh strap seat sling and backrest which are both adjustasble and fitted with low-profile titanium buckles.  For added comfort the backrest comes also comes with an optimized air-tech centre pad.

Dimensions
Width:Max. 680 mm (SW + 240 mm)
Seat Width:250 - 440 mm
Seat Depth:250 - 440 mm
Front seat height:380 - 520 mm
Rear seat height:360 - 500 mm
Seat Angle:Custom-made
Backrest Height:100 - 400 mm
Backrest Angle:Custom-made
Frame Angle:Custom-made
Camber:1° / 2° / 3°
Colours:23 frame colours plus 5 anodiced accent colours
Performance/Weights
Maximum User Weight:110 kg
Total Weight:From 6,2 kg (Dismantled from 3.6 kg)

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.

Support

Documentation

Frequently Asked Questions

The total width of your wheelchair can be found in the user manual (or in the ordering documentation of your wheelchair). What is important to know when it comes to manual wheelchairs is if you have a camber, the overall width increases rapidly. For example, a wheelchair with 6 degrees camber and 24 "wheels, becomes 80 mm wider than a chair with 0 degrees camber.

Please consult your user manual for more information on setting changes for your wheelchair.

Yes, our Built-4-Me team can help you achieve requirements that go above and beyond what you would find on the typical product order form. They'll make every effort to provide you with the most suitable solution to your request.

We'd recommend that your wheelchair is serviced by an authorised Sunrise Medical dealership every year. For your safety, some elements of your wheelchair should be checked regularly. Please refer to your user manual for more information.

Ultra-lightweight wheelchairs tend to be made of areospace-grade aluminum or carbon fibre, so they're stronger whilst not compromising the weight of the wheelchair. More durable, ultra-lightweight wheelchairs are custom-built to your needs and are highly customisable with a wealth of features and style options. QUICKIE's range of ultra-lightweight wheelchairs also employ a range of unique patented features to further strengthen the frame whilst minimising weight (such as ShapeLoc Technology on the Xenon series or X-Braid Technology on the Krypton).
