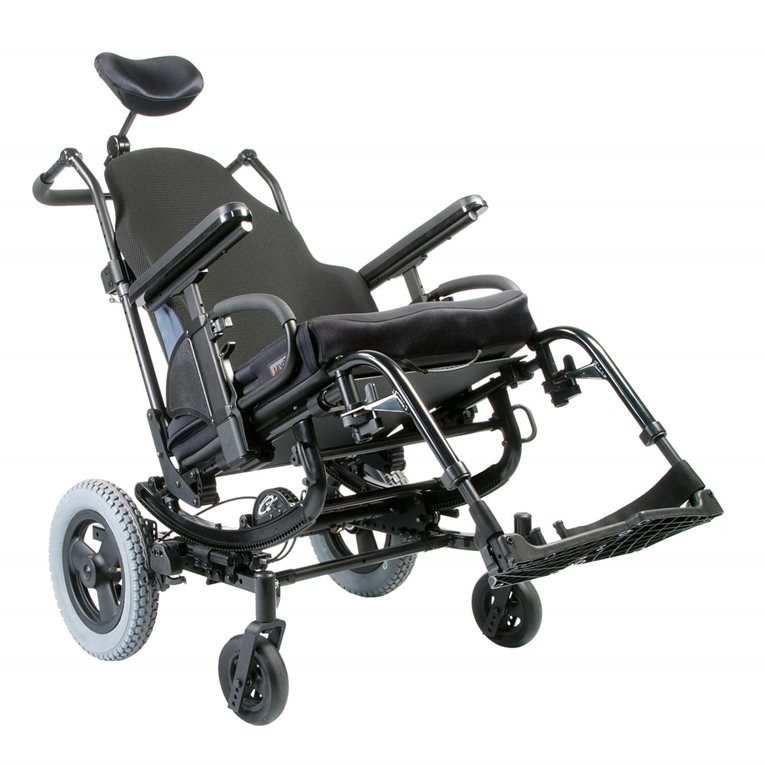

QUICKIE SR45Tilt In Space Wheelchair

Features 45 degrees of patented and proven rotation-in-space technology

The Quickie SR45 is the newest member of the acclaimed Quickie tilt-in-space family. It features 45 degrees of patented and proven rotation-in-space technology, a durable base and a streamlined targeted offering of key clinical options. Pre-configured for ease of ordering.

This wheelchair is a highly configurable product with many options and accessories. Your local authorised dealer will be able to provide a price quotation.

Contact
Crash Tested Quickie SR45 tilt-in-space wheelchair
Proven Rotation-In-Space Technology

Proven Rotation-In-Space Technology

When Intelligent Rotation In Space (IRIS) technology first appeared, it revolutionized the concept of a tilt wheelchair. The technology eliminated long wheel-bases and a complex mechanical tilt mechanism by rotating the seat frame around the user's centre-of-gravity. Rotation-in-space, including the SR45, are easy to maneuver and operate.

Smart Option Mix

Smart Option Mix

SR45 comes standard with:
• Non folding back canes
• Height adjustable back with adjustable stroller handles
• Foot tilt
• Transit tie downs
• Dual post height adjustable flip back with full length arm pads
• 70` Swing in/ out hangers, solid seat pan and rear anti tips
• Composite foot plates

Adjustable frame

Adjustable frame

The frame of the Quickie SR45 can be selected in 3 depth ranges, from 36 to 56 cm. By moving the backrest and hanger tubes, it is also possible to adjust the seat depth by 10 cm to adapt to changes in the user. The seat and tilt rail assembly can also be placed in different positions to improve stability.

Positioning and comfort

Positioning and comfort

The standard configuration includes chassis and solid seat base. However, SR45 is particularly suitable for use in combination with our range of Jay cushions and backrests, as well as any of our Whitmyer headrests. This increases the clinical benefits of the chair, adding greater comfort, anti-decubitus protection and optimising the personalised positioning of each user.

Specifications

Dimensions
Seat Width:16", 18", 20"
Seat Depth:16", 18"
Front seat height:17"
Rear seat height:17"
Seat Angle: 0º - 45º
Backrest Angle:15 - 21" (38 - 53.5 cm) or 18 - 24" (45.5 - 61 cm)
Armrest Height:200
Colours:5 colori
Performance/Weights
Maximum User Weight:120 kg
Total Weight:18 kg
Transportation
Crash Tested?This product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19

As a part of our ongoing product improvement initiative, Sunrise Medical reserves the right to change specifications and design without notice. Further, not all features and options offered are compatible with all configurations of the wheelchair. Please consult the user instruction manual for more information.
